商品の詳細:
|
| Output voltage: | 9 - 13 mV (in air) | Te response time: | < 15 seconds |
|---|---|---|---|
| Linearity: | Full-scale linearity | Temperature compensation: | < 2% of full scale, at 0 - 40°C |
| Weight: | Approximately 40 grams | Operating pressure range: | 0.5 - 2.0 Bar |
| ハイライト: | YJJ AOM-09 oxygen sensor,ITG M-09 replacement oxygen cell,oxygen generator concentration module probe |
||
Product Description:

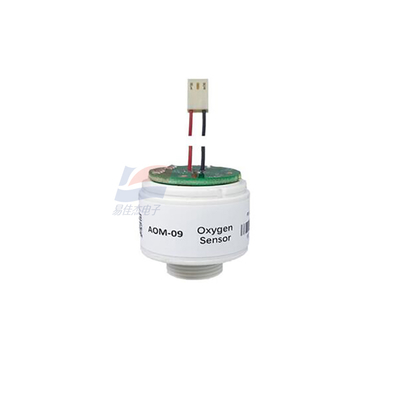

YJJ AOM-09 Oxygen Sensor Oxygen Cell Is Used As A Substitute For ITG M-09 Oxygen Concentration Module Probe In Oxygen Generators
Features:
AOM-09 oxygen sensor is an electrochemical sensor specifically designed for measuring oxygen concentration in medical equipment. It features a molded body design, with characteristics such as rapid response and long service life.
AOM-09 oxygen sensor does not require an external power supply during operation. It has undergone professional and accurate product calibration and temperature compensation upon factory production. It can be used as a sensing component in oxygen analyzers, such as oxygen generators' control devices, medical ventilators, anesthesia equipment, incubators, etc.
Product model: AOM-09
Working principle: Voltage divider electrochemistry
Output voltage: 9 - 13 mV (in air)
Measurement range: 0 - 100
Te response time: < 15 seconds
Linearity: Full-scale linearity
Temperature compensation: < 2% of full scale, at 0 - 40°C
Load resistance: > 10k
Interface: Molex 3-pin connector (2.54mm, with connecting wire)
Shell material: White ABS
Weight: Approximately 40 grams
Operating temperature range: 0 - 50°C
Operating pressure range: 0.5 - 2.0 Bar
Operating humidity range: 0 - 99% RH (no condensation)
Long-term drift: < 5% (voltage attenuation/year, 100% 0, in the environment)
Service life: 1.5 x 10^6 hours (20°C)
Shelf life: 13 months from the date of shipment
Specifications:
| Measurement range | 0 - 100 |
| Service life | > 18 months |
| Load resistance | > 10k |
| Shell material | White ABS |
