商品の詳細:
|
| 測定範囲: | 0 - 100% | 正確さ: | +/-2% (フルスケール) |
|---|---|---|---|
| シグナル出力: | 10 - 13 mV | 線形性: | 全スケールの+/-2%) |
| 応答時間 T90: | 4秒 | 温度係数: | 補償 |
| ハイライト: | Medical Electrochemical Oxygen Sensor,PSR 11-917-C Electrochemical Oxygen Sensor,Electrochemical Oxygen Sensor |
||
Product Description:

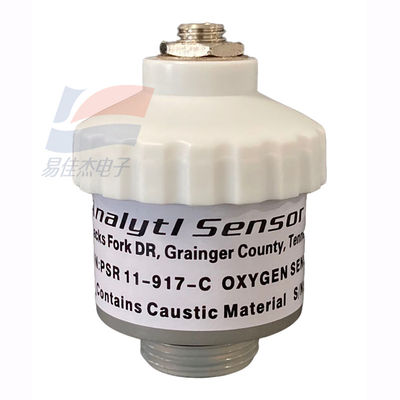

PSR 11-917-C Electrochemical Oxygen Sensor Oxygen Battery For Medical Applications
Features:
Description of the American AII Oxygen Sensor - PSR-11-917-MH1:
This electrochemical reference oxygen sensor GPR-11-917-MH1, manufactured in the United States and certified by the medical industry, boasts excellent accuracy and stability, and has undergone individual testing before shipment.
The new sensor is directly obtained from production, with an extended service life and a long warranty period. It complies with the U.S. Food and Drug Administration, MDSAP, ISO13485, and ISO9001.
The main functions of the American AII Oxygen Sensor - PSR-11-917-MH1:
Oxygen sensor compatibility: Atom V-2100G Incubator
Atom V-2200 Incubator
Drager C2000 Incubator
Drager/Airshield Isolette Incubator with built-in monitor
Replace the sensor for: IT Gambert M-12
Sensoronics SS-12AIR
Parameters of the American AII oxygen sensor - PSR-11-917-MH1:
Measurement range: 0 - 100%
Accuracy: +/-2% (full scale)
Signal output: 10 - 13 mV
Linearity: +/-2% of full scale)
Response time T90: 4 seconds
Temperature coefficient: Compensation
Operating temperature: 0 to 45°C
Storage temperature: 0 to 25°C
Shelf life: 6 months
No condensation of humidity (expected lifespan) 0 - 99% RH
Expected lifespan: 60 months
Shelf life: 14 months
Electrical connector: 3-pin male Molex, compatible with Molex 2201-2037 connector
Specifications:
| Operating temperature | 0 to 45°C |
| Storage temperature | 0 to 25°C |
| Shelf life | 6 months |
| No condensation | 0 - 99% RH |
