商品の詳細:
|
| ガスの測定: | 酸素 (O2) | 測定範囲: | 0~25% |
|---|---|---|---|
| 最高の積み過ぎ: | 30% VOL | 敏感性: | 3.8〜5.7 uA/vol% |
| ゼロポイント・ドリフト: | < 0.2% vol | 決議: | 0酸素量0.1% |
| ハイライト: | DTS-4O2 Oxygen Sensor,Electro Chemical Oxygen Sensor,Mining Electrochemical Oxygen Sensor |
||
Product Description:

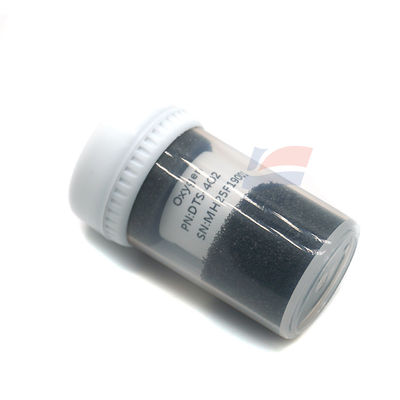

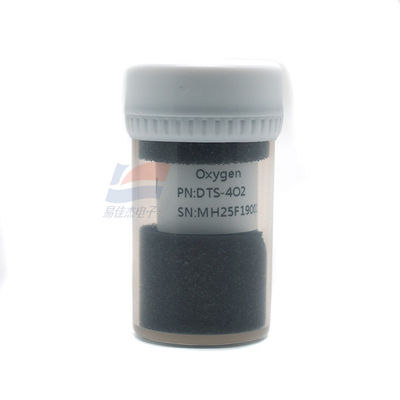

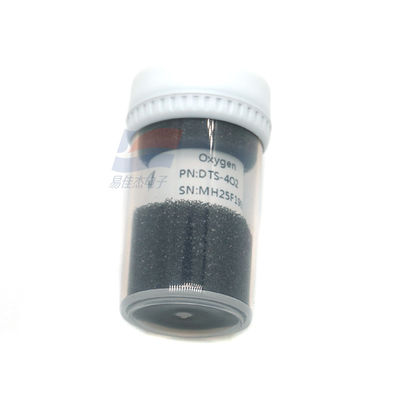

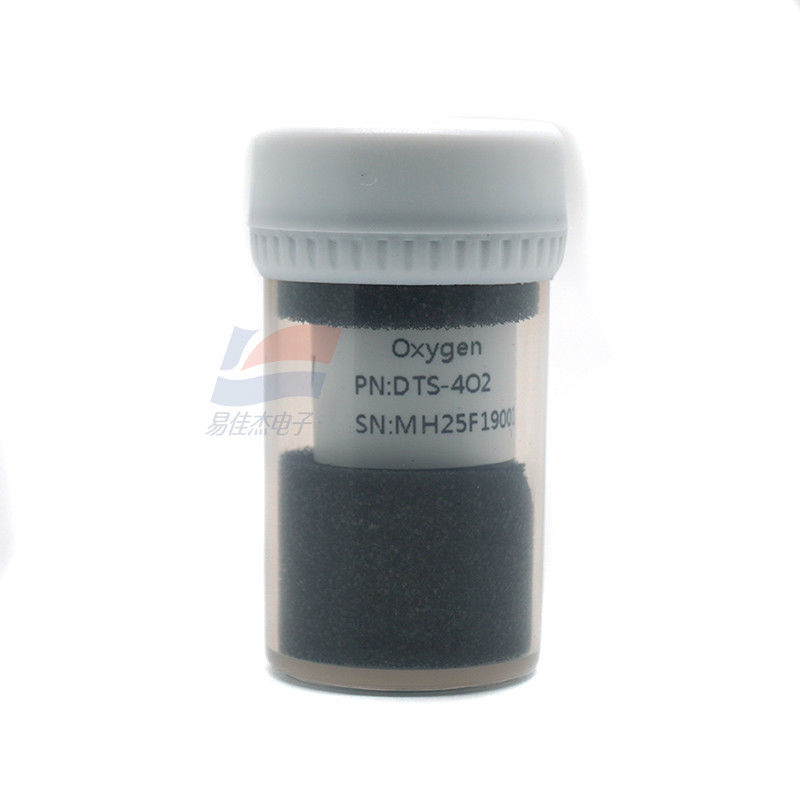

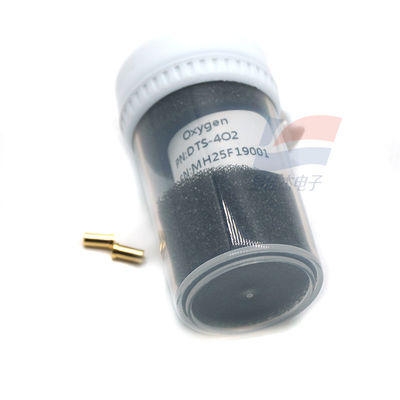

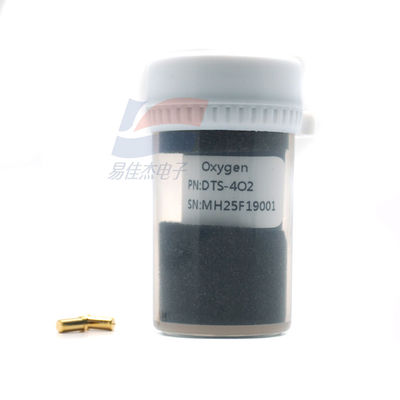

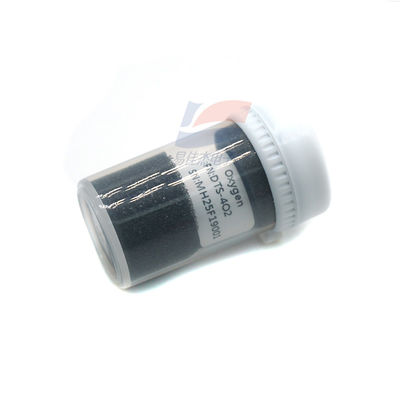

DTS-4O2 Industrial Electrochemical Oxygen Sensor Is Used In Mining Industry
Features:
DTS-4O2 oxygen sensor is a primary battery type sensor. It features high sensitivity, high accuracy, good stability, and fast response. It is widely used in various environments for oxygen gas monitoring, such as industrial oxygen monitoring, environmental protection oxygen monitoring, mine oxygen monitoring, and warehouse oxygen detection.
Performance parameters:
Measurement of gas: Oxygen (O2)
Measurement range: 0 - 25% VOL
Maximum overload: 30% VOL
Sensitivity: 3.8 - 5.7 uA/vol%
Zero-point drift: < 0.2% vol
Resolution: 0.1% VOL
Response time (t90): < 10 seconds
Output linearity: Linearity
Environment:
Operating temperature: -40 - +50℃
Working humidity: 15% - 95% RH (no condensation)
Work pressure range: 1 ± 0.1 standard atmospheres
Lifetime Warranty:
Long-term output drift: < 5% per year
Recommended storage conditions: In a sealed container at 0 - 20℃
Expected service life: 24 months in the air
Storage period: 6 months for original packaging
Warranty period: 12 months
Specifications:
| Operating temperature | -40 - +50℃ |
| Working humidity | 15% - 95% RH (no condensation) |
| Work pressure range | 1 ± 0.1 standard atmospheres |
| Long-term output drift | < 5% per year |
