商品の詳細:
|
| 圧力の種類: | 絶対圧力 | 仕事 の 圧力: | 200KPa |
|---|---|---|---|
| 出力型: | シミュレーション | 出力電圧: | 3.3 |
| 正確さ: | 0.04 | 特性: | デジタル出力 |
| ハイライト: | 200KPa Solid State Pressure Sensor,NPH-8-200AH Solid State Pressure Sensor,Solid State Pressure Sensor TO-8 |
||
Product Description:

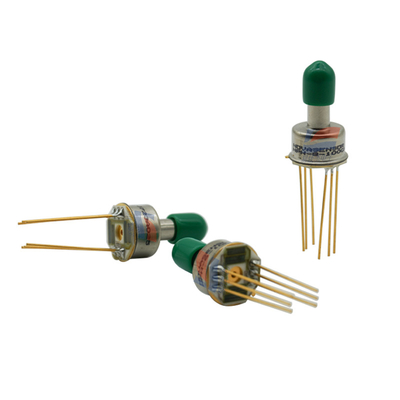

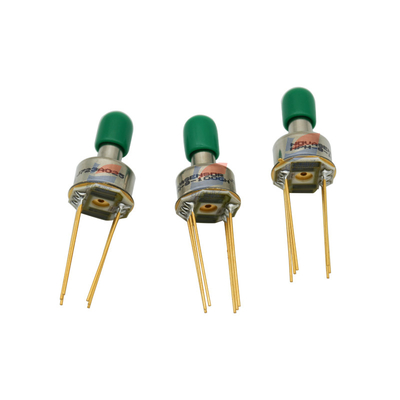

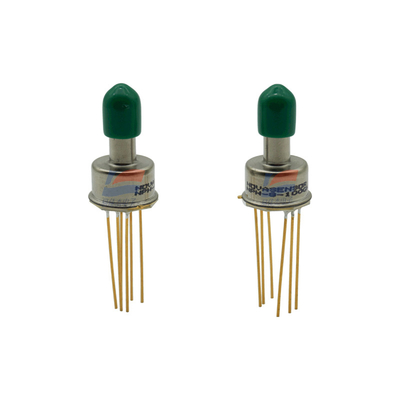

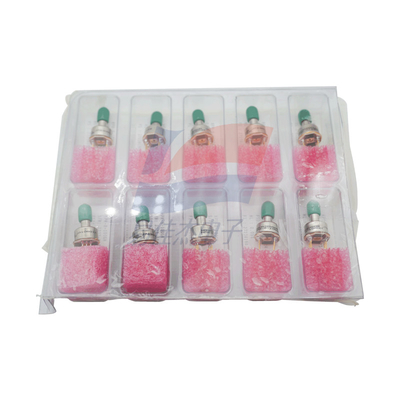

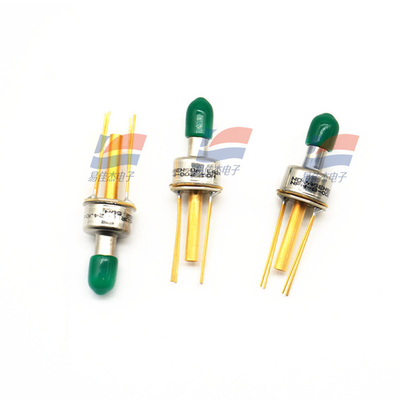

NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
Features:
Parameter Name Attribute Value Product Attribute Attribute Value
Manufacturer
Manufacturer: Amphenol (Anfenuo) Product types
Product Category Board Mount Pressure Sensors
RoHS In Transition
Operating Pressure 200 kPa
Type of stress Pressure Type Absolute
Accuracy: 0.2%
Packaging / Enclosure Package / Case TO-8-6
Minimum operating temperature Minimum Operating Temperature - 40 C
Maximum operating temperature Maximum Operating Temperature + 125 C
Series
Packaging Tray
Output Voltage 100 mV
Working power supply current
Operating Supply Current 1.5 mA
Factory packaging quantity Factory Pack Quantity 1
Mfr Amphenol NovaSensor
Output 0 mV ~ 100 mV
Series NPH
Package Bulk
Accuracy ±0.1%
Features Temperature Compensated
Port Size Male - 0.19" (4.83mm) Tube
Port Style Barbless
Output Type Wheatstone Bridge
Applications Board Mount
Mounting Type Through Hole
Pressure Type Absolute
Package / Case TO-233AA, TO-8-3 Metal Can
Product Status Active
Maximum Pressure 116.03PSI (800kPa)
Voltage - Supply -
Termination Style PC Pin
Operating Pressure 29.01PSI (200kPa)
Base Product Number NPH-8
Operating Temperature -40°C ~ 125°C
Supplier Device Package TO-8
Specifications:
| Maximum Pressure | 116.03PSI (800kPa) |
| Base Product Number | NPH-8 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | TO-8 |
