商品の詳細:
|
| 波長: | 5nm | 近距離検出: | 3 |
|---|---|---|---|
| 出力型: | アナログ増幅 | 供給電圧: | 5.0 |
| 動作温度: | -40から+85 | パッケージ/仕様: | SMT |
| ハイライト: | HSCMRNN001PDAA3 Pressure Sensor,HSCMRNN001PDAA3,Medical Devices Pressure Sensor |
||
Product Description:

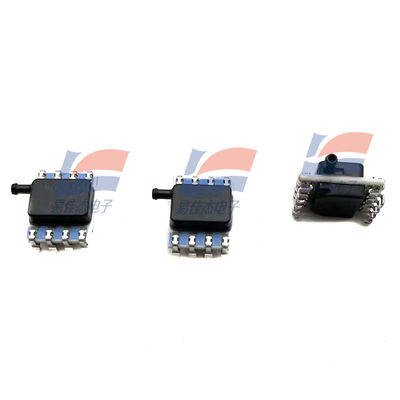

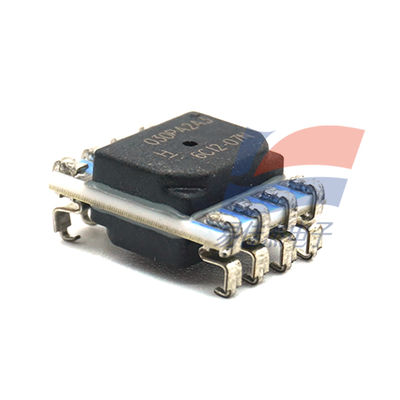

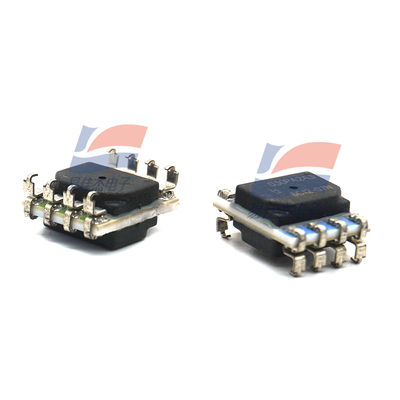

HSCMRNN001PDAA3 Unidirectional Radial Spiked Port 0 - 1 Bar Pressure Sensor For Medical Devices
Features:
Built-in pressure sensor of the TruStability™ HSC series is compensatory. TEB (Total Error Band): ±1% FSS to ±3% FSS (differential pressure, gauge pressure), low (absolute pressure, differential pressure, gauge pressure). Digital or analog output. DIP, SIP, SMT
Pressure range
±1.6 mbar to ±10 bar, ±160 Pa to ±1 MPa, ±0.5 inH2O to ±150 psi
The silicon ceramic (HSC) series are piezoresistive silicon pressure sensors, providing proportional analog outputs or digital outputs, which are used to provide pressure readings within the full-scale pressure range and temperature range of the device. The HSC series can utilize the integrated circuits on the circuit board to perform calibration and temperature compensation for the sensor's zero point, sensitivity, temperature coefficient, and non-linearity. The calibrated analog output values and digital output values are updated at rates of approximately 1 kHz and 2 kHz respectively.
The HSC series is calibrated within the temperature range of 0°C to 50°C [32°F to 122°F]. This sensor is characterized by its ability to operate under a single power supply of 3.3 Vdc or 5.0 Vdc.
These sensors can measure absolute pressure, gauge pressure or differential pressure. The absolute pressure type sensor uses vacuum pressure as the internal reference value, and its output value is proportional to the absolute pressure. The gauge pressure type sensor uses atmospheric pressure as the reference and provides an output value that is proportional to the difference from atmospheric pressure. The differential pressure sensor can measure the pressure between the two pressure ports.
The TruStability® pressure sensor is designed to be used in conjunction with non-corrosive and non-ionic gases, such as air and other dry gases. Through a wide range of options, the performance of these sensors can be extended to pressure ranges exceeding 40 mbar, 4 kPa, and 20 inH2O.
All products are designed and manufactured in accordance with the ISO 9001 standard.
Application fields
Health:
Gas mass flow monitor
Anesthesia machine
Blood analyzer
Gas chromatograph
Gas flow instrument
Renal analyzer
Oxygen generator
Pneumatic control
ventilator / respirator
Sleep apnea assistance device
ventilator / respirator
Pulmonary capacity meter
Atomizer
Hospital indoor air pressure control
Specifications:
| Work stress | ±160Pa~±1MPa |
| Output voltage | 3.3 |
| Accuracy | 0.25% Series |
| Supplier Device Package | SIP |
