商品の詳細:
|
| 動作圧: | 100psi | 正確さ: | 0.4% |
|---|---|---|---|
| 出力型: | アナログ | マウントスタイル: | スルーホール |
| ハイライト: | 100psi Pressure Sensor,26PCFFS2G Pressure Sensor,Board Mount Pressure Sensor |
||

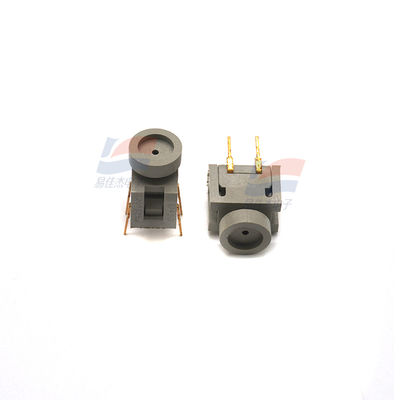

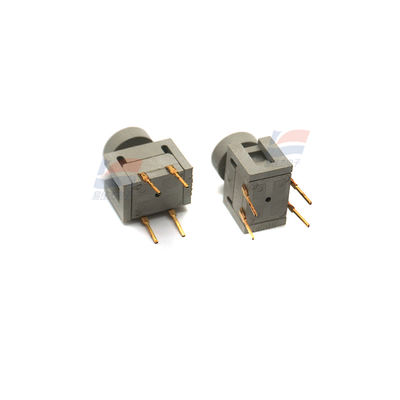

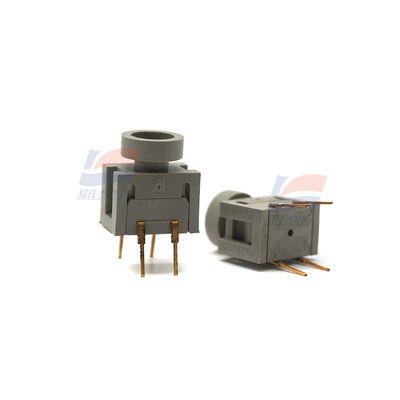

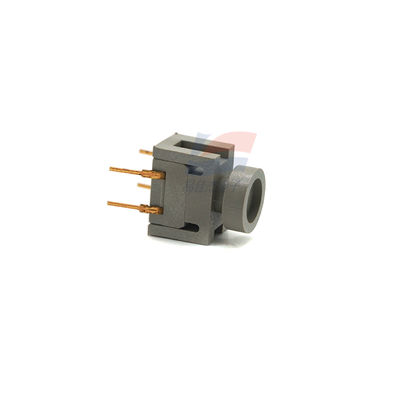

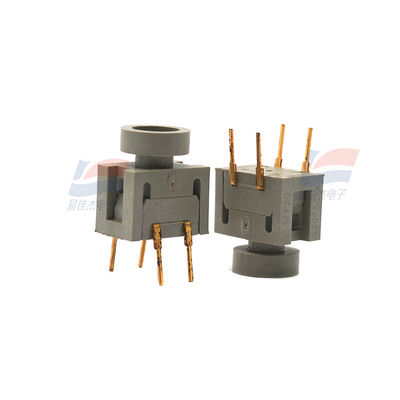

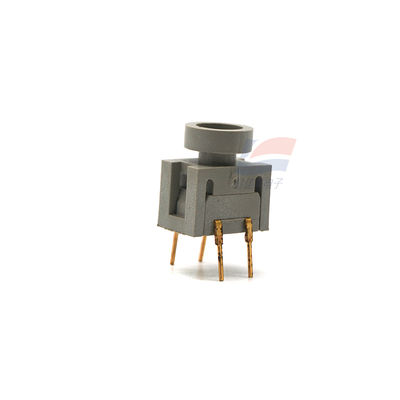

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi
FEATURES
1 Lowest priced sensor with temperature compensation and calibration
2 Variety of gage pressure port configurations - easily and quickly modified for your special needs
3 Operable after exposure to frozen conditions
4 1 Choice of termination for gage sensors Calibrated Null and Span
5 Temperature compensated for Span over 0 to 50°C
6 Provides interchangeability
7 Can be used to measure vacuum or positive pressure
8 Ideal for wet/wet differential applications
|
Mounting Style
|
Through Hole |
| Port Type | Single Axial Barbless |
| Package / Case | DIP-4 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Port Size | 0.36 in |
| Supply Voltage - Max | 10 V |
