商品の詳細:
|
| 酸素圧範囲: | 2mbar〜3bar 最大 | 正確さ: | 5mbar 最大 |
|---|---|---|---|
| 内部動作温度: | 700°C | 応答時間 (10~90%ステップ): | < 4s |
| ハイライト: | Zirconia O2 gas sensor,Long life oxygen sensor,High accuracy O2 sensor |
||

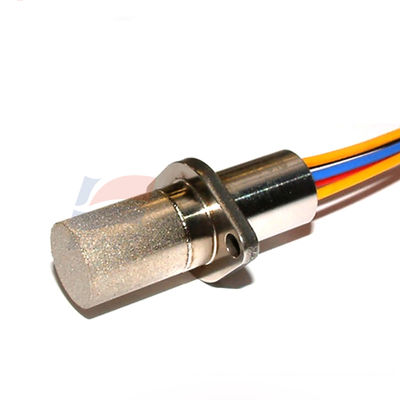

O2S-FR-T5 Zirconia O2 Gas Sensor Long Life And High Accuracy
FEATURES
• Zirconium dioxide (ZrO2) sensing elements
• Long life, non-depleting technology
• Integral heating element
• High accuracy
• Requires an external interface board to operate
BENEFITS
• No reference gas required
• No need for temperature stabilisation
• Flange mounting
TECHNICAL SPECIFICATIONS
| Operating | 4.35VDC ± 0.1VDC (1.85A) |
| Standby | 2VDC (0.85A) |
| Pump impedance at 700°C | < 6kΩ |
| Permissible gas temperature | -100°C to +250°C |
| Gas flow rate | 0—10 m/s |
| Repetitive permissible acceleration | 5g |
| Incidental permissible acceleration | 30g |
