商品の詳細:
|
| 感知原理: | 熱線半導体型 | 標準パッケージ: | プラスチックベースと金属缶 |
|---|---|---|---|
| ターゲットガス: | アセトン | 典型的な検出範囲: | 1 ~ 20ppm |
| ハイライト: | TGS1820 acetone gas sensor,high sensitivity acetone detector,selective acetone gas sensor |
||

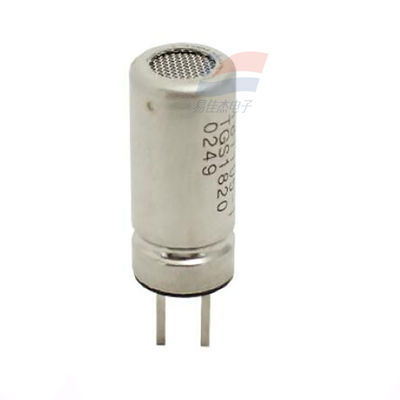

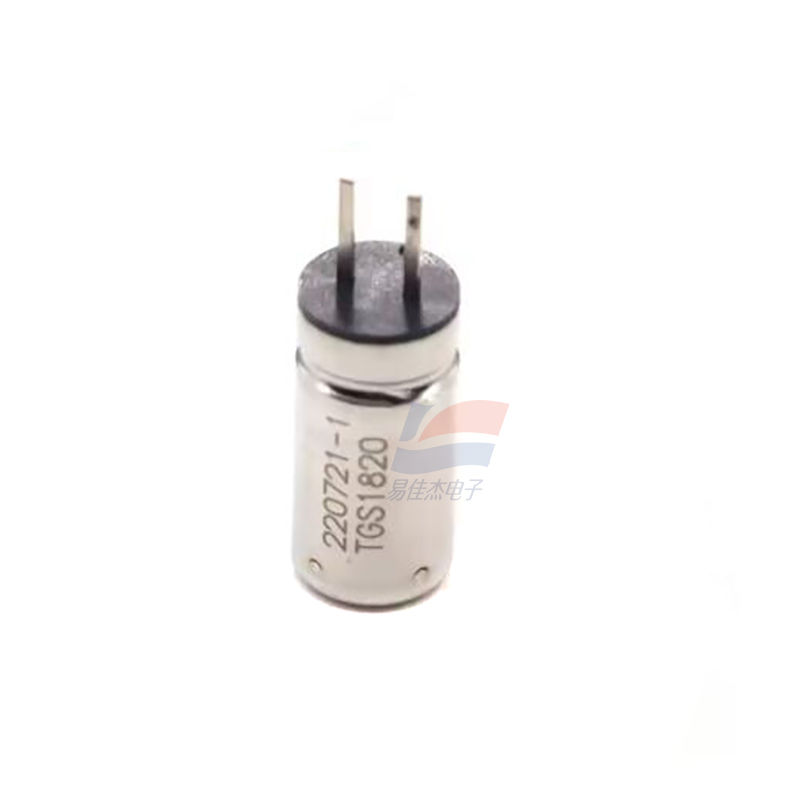

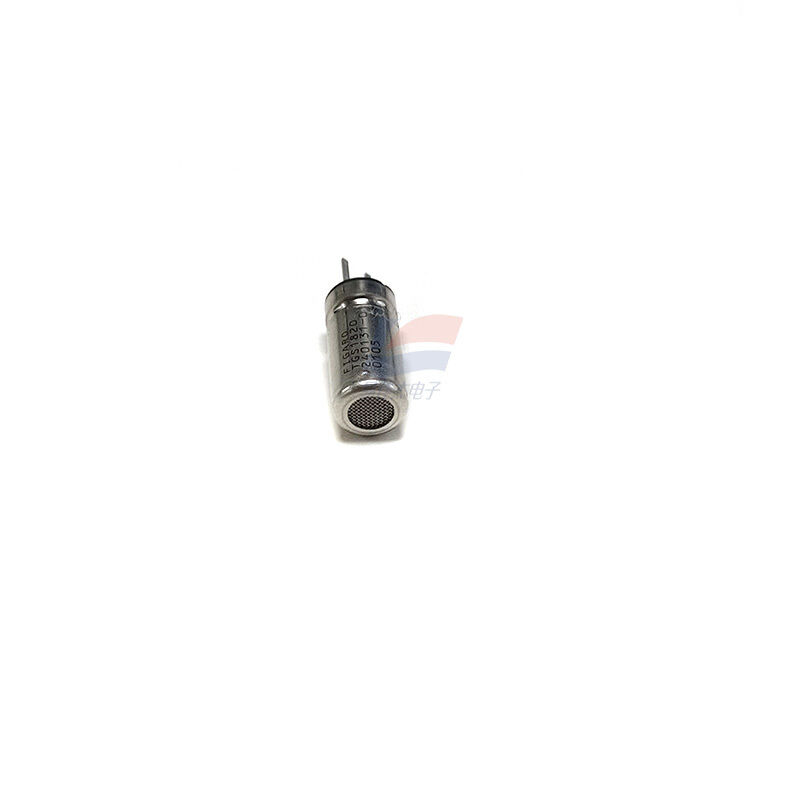

TGS1820 AcetoneGas Sensors High Sensitivity And Selectivity AcetoneDetectors
Features:
* High sensitivity and selectivity toacetone
* Low interference from ethanol and hydrogen
* Quick response
* Compact
* Low power consumption
Applications:
* Acetonedetectors
* Breathacetone testers
| Operating temperature and humidity | 0 ~ 40˚C, 10 ~ 80%RH |
| Circuit voltage | 2.30±0.05V DC |
| Load resistance | 10Ω ±1% |
| Opposite side resistance | 510Ω ±1% (variable) |
| Power consumption | 125mW |
| Sensor current | ≤ 85mA |
| Sensor output Vb (Air) | -370 ~ -290mV |
| (1ppmAcetone) | 20 ~ 60mV |
