商品の詳細:
|
| 圧力の種類: | 真空、ゲージ | 動作圧: | 250のPSI |
|---|---|---|---|
| 正確さ: | 0.4% | 出力型: | アナログ |
| ハイライト: | board mount pressure sensor,vacuum gauge pressure sensor,through hole pressure sensor |
||

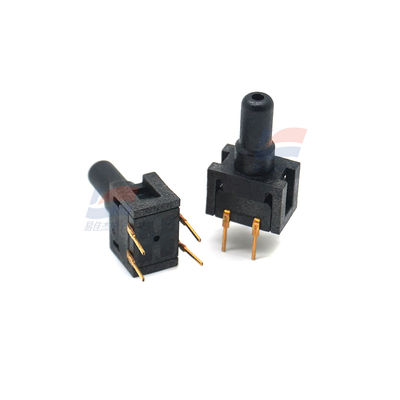

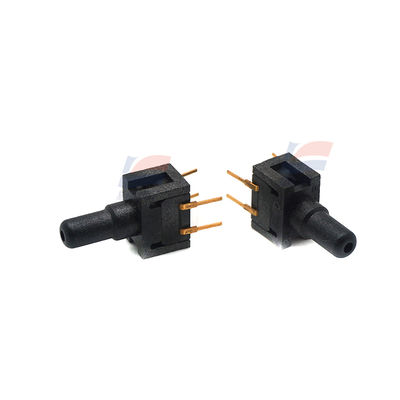

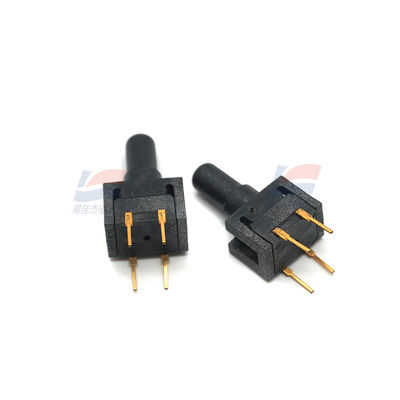

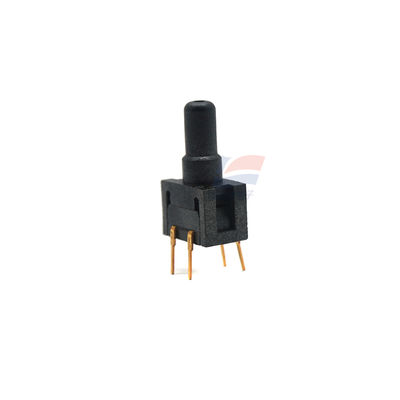

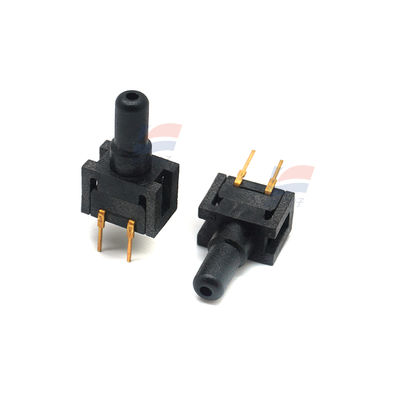

26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF]
Specification
|
Mounting Style
|
Through Hole |
| Package / Case | PDIP-4 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Supply Voltage - Max | 10 V |
