商品の詳細:
|
| 申請: | 板台紙 | 圧力の種類: | 混合物 |
|---|---|---|---|
| 動作圧: | ±250PSI (±1723.69kPa) | 出力型: | ホイートストン・ブリッジ |
| ハイライト: | board mount pressure sensor,gauge pressure sensor axial,barbless electronic pressure sensor |
||

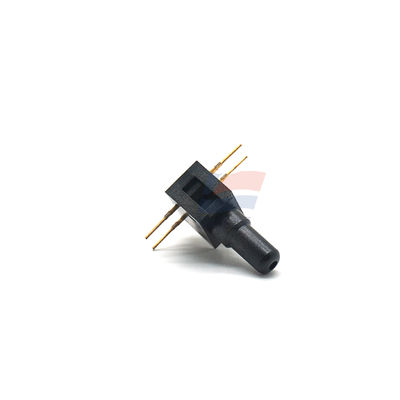

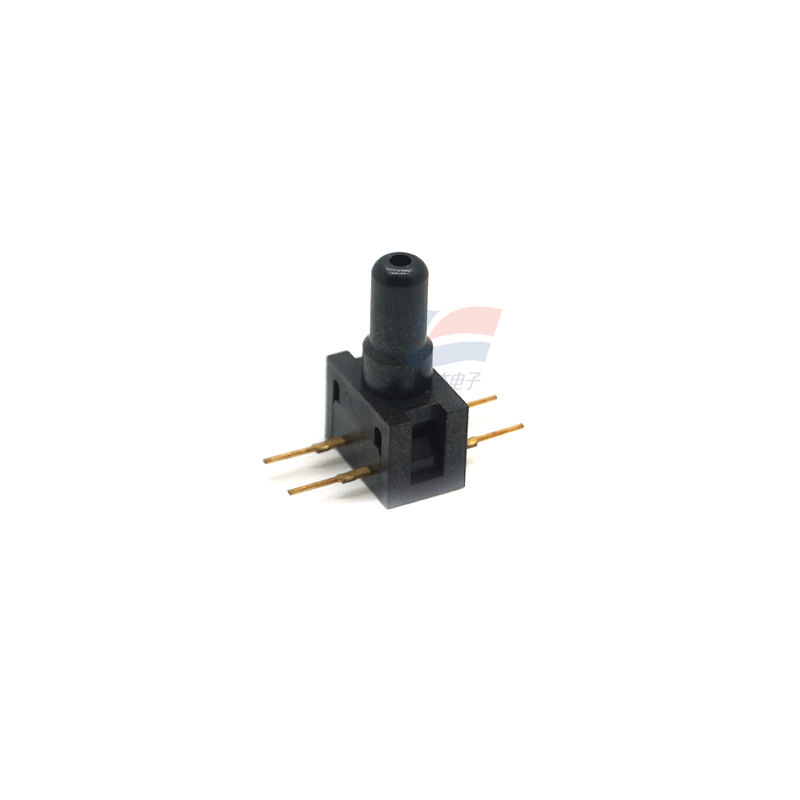

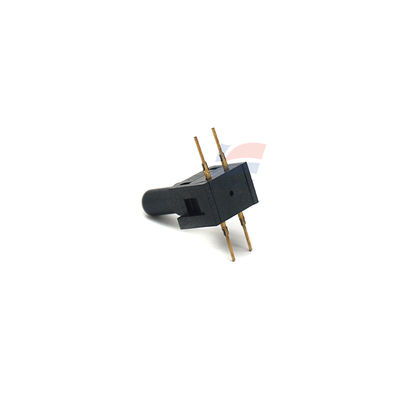

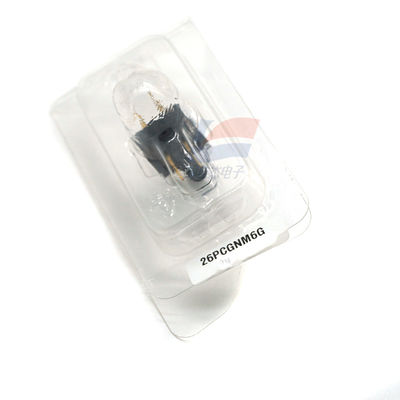

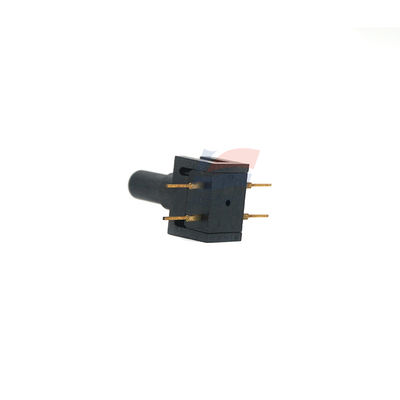

26PCGNM6G Board Mount Pressure Sensors Gauge Single Axial Barbless
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF].
| Output | 0 mV ~ 150 mV (10V) |
| Accuracy | ±0.7% |
| Voltage - Supply | 2.5V ~ 16V |
| Port Size Male | - 1/4" (6.35mm) UNF |
| Port Style | Threaded |
| Features Temperature | Compensated |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-SIP Module |
