商品の詳細:
|
| 結晶構造: | シングルクリスタル | 製造プロセス: | 統合 |
|---|---|---|---|
| 出力信号の種類: | デジタル | 動作圧力範囲: | 0バーから4バー |
| 正確さ: | ±0.25% | ヒステレシス: | ±2%F.S. |
| ハイライト: | Infusion pump pressure sensor,Non-inverting pressure sensor,Portable electronic pressure sensor |
||

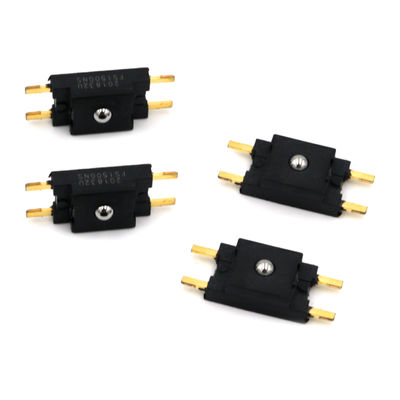

FSS1500NST FSS1500NGT Pressure Sensor For Infusion Pumps Portable Non-inverting Pressure Pumps
Operational Features:
Working Principle:
The sensor features a stainless steel ball exterior and a silicon sensing chip inside. When the steel ball is pressed and contacts the internal silicon sensing chip, the silicon piezoresistive element bends under pressure, causing its resistance to change. The resistance changes in the bridge circuit generate a corresponding voltage output signal.
Application Fields:
| Hysteresis | ±2%F.S. |
| Repeatability | ±2%F.S. |
| Sensitivity | 14 mV/g8 |
| Resolution | 12 - bit |
| Operating Supply Voltage | 5V |
| Maximum Supply Voltage (DC) | 12V8 |
| Operating Temperature Range | - 40℃ to 85℃ |
| Package/Case | SIP (Single In - line Package) |
| Mounting Style | Through - Hole |
| Protection Class | Class 1 |
| Maximum Reflow Temperature | 260℃ |
| Over - pressure Tolerance | Up to 4.5/5.5 kg |
| Actuator Type | Ball2 |
| Actuator Size | Round, 1.98 mm diameter |
