商品の詳細:
|
| ピン数: | 4 | 体重: | 500mg |
|---|---|---|---|
| 寸法: | 7.11 mm×6.1 mm×7.87 mm | 応答時間: | 1人の氏 |
| ハイライト: | medical differential pressure sensor,spirometer pressure sensor,electronic pressure sensor for medical |
||

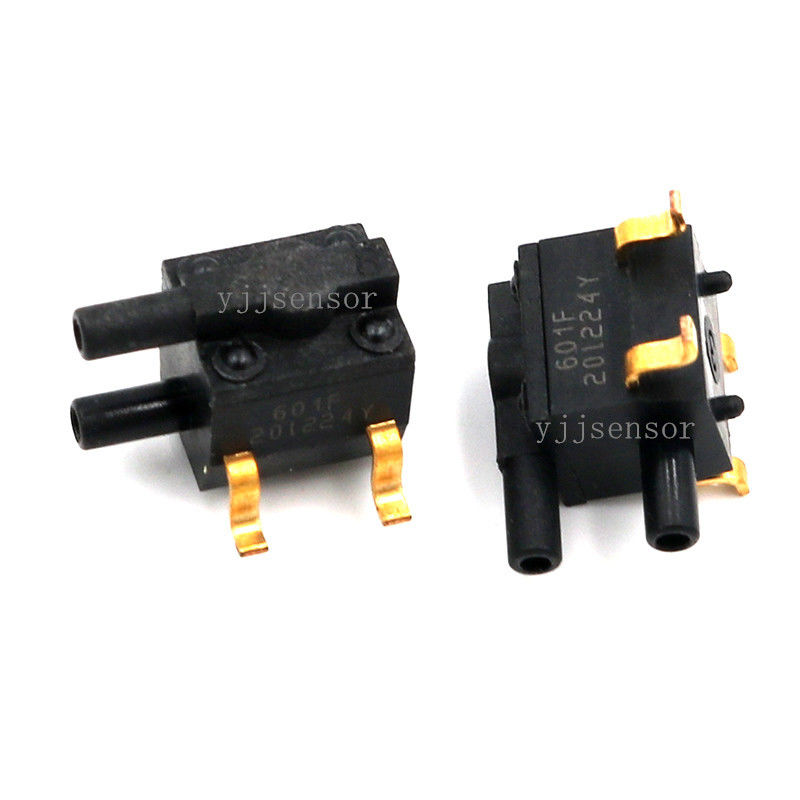

26PC05SMT Differential Pressure Sensor For Medical Industry Spirometers
Working Principle:
Adopts a piezoresistive micro-machined sensing element containing four active piezoresistors forming a Wheatstone bridge. When pressure is applied, the resistance changes, and the sensor provides a millivolt output signal proportional to the input pressure.
Product Features
Compatible Media:
Can accommodate various wet and dry media compatible with polyphthalamide (PPA) plastic and sealing media, suitable for non-corrosive and non-ionic working fluids such as air and dry gases.
Industry Applications
Although designed for the medical industry (e.g., spirometers), it can also be used in any industry requiring surface-mounted pressure sensors.
| Operating Temperature | -40°C - 85°C |
| Output Type | Analog, Wheatstone Bridge |
| Supply Voltage | 2.5 V - 16 V,Operating Supply Voltage 10V |
| Pressure Port | Straight,Port Size 为 Male - 0.07" (1.88 mm) Tube |
| Package/Case | SIP(Single In - line Package) 4 - SMD Module |
| Number of Pins | 4 |
| Weight | 500 mg |
| Dimensions (Length×Width×Height) | 7.11 mm×6.1 mm×7.87 mm |
