商品の詳細:
|
| 圧力範囲: | 1 - 20 cmH₂O (約 0.15 - 3 psi) | 正確さ: | ±1% FS |
|---|---|---|---|
| 供給電圧: | 3.3 VDC | 供給電流: | 2mA |
| 決議: | 14 - ビット | 償われた温度較差: | -5〜60 °C |
| ハイライト: | medical pressure sensor SM9541,industrial pressure sensor 020C,electronic pressure sensor S-C-3-S |
||

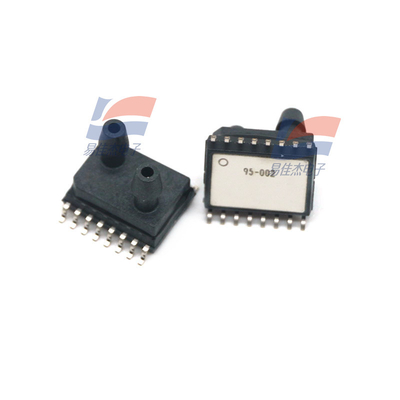

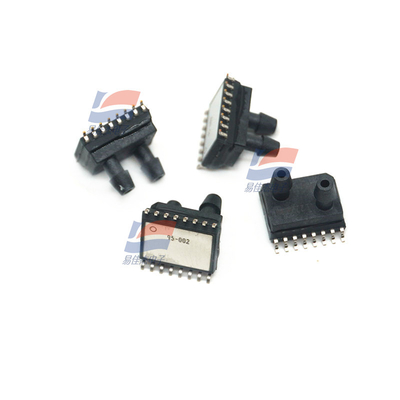

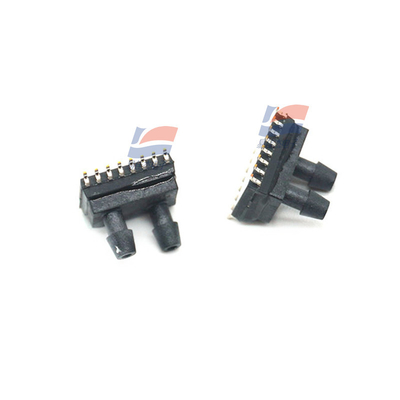

SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field
Product features:
Application field:
| Pressure Range | 1-20 cmH₂O | |
| Accuracy | ±1% FS | -- |
| Supply Voltage | 3.3 | VDC |
| Supply Current | 2 | mA |
| Output Interface | I2C | -- |
| Resolution | 14 - bit | -- |
| Compensated Temperature Range | -5 - 60 | °C |
| Operating Temperature Range | -5 - 65 | °C |
| Port Style | Dual Radial Barbed | -- |
| Long - term Zero Shift | <+2% FS over 10 years | -- |
| Package/Case | SOIC - 16 |
