商品の詳細:
|
| 電源電圧: | 1.62 - 3.6 ボルト | 平均供給の流れ: | 0.5マイクロアンパー |
|---|---|---|---|
| 最高の供給の流れ: | 570マイクロアンパー | 動作温度範囲: | -40〜125 °C |
| サイズ (長 × 幅 × 高さ): | 2 × 2 × 0.7ミリメートル | パッケージサイズ 500 (サンプル): | 100010000個 (T&R) |
| ハイライト: | digital temperature humidity sensor,wearable temperature sensor ±2%,smart humidity sensor for wearables |
||
Product Description:

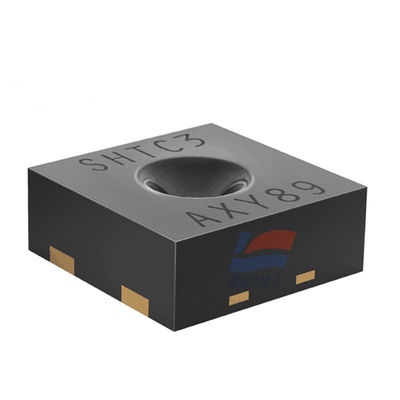

SHTC3 Digital Temperature And Humidity Sensor (±2%) For Smart Wearables
Features:
Digital temperature and humidity sensor (±2%)
The SHTC3 digital humidity sensor is derived from the SHTC1, which has undergone rigorous market testing and achieved remarkable results.
With a wider power supply voltage range (1.62 - 3.6 V) that surpasses its predecessors and top-notch accuracy (±2% relative humidity, ±0.2℃), it offers greater flexibility.
Sheng Siren's proprietary CMOSens® technology provides a complete sensor system based on a single chip, including capacitive humidity sensors, bandgap temperature sensors, analog and digital signal processing, analog/digital converters, calibration data storage, and a digital communication interface supporting I2C fast mode. Even in the most limited space, the compact 2 x 2 x 0.75 mm³ DFN package enables it to handle various applications with ease. This sensor can measure relative humidity from 0 to 100% and temperature from -40°C to 125°C, with a typical measurement accuracy of ±2% relative humidity and ±0.2°C. With a wide power supply voltage range of 1.62 V to 3.6 V and an energy consumption budget of less than 1 μJ per measurement, the SHTC3 is highly suitable for battery-powered mobile or wireless applications.
The SHTC3 inherits the high quality and reliability of Sheng Siren's humidity and temperature sensors, which have gained a good reputation in the industry. It can provide consistently high accuracy within a wide measurement range, offering users the best value for money. Thanks to the organic combination of the roll packaging and the standard SMD assembly process, the SHTC3 becomes an ideal choice for large-scale applications.
Specification
Humidity
Typical relative humidity accuracy 2 %RH
Operating relative humidity range 0 - 100 %RH
Response time (τ63%) 8 seconds
Calibration certificate Factory calibration
Temperature
Typical temperature accuracy 0.2 °C
Response time (τ63%) 5 seconds
General
Power supply voltage 1.62 - 3.6 volts
Average supply current 0.5 microamperes
Maximum supply current 570 microamperes
Operating temperature range [°C] -40 - 125 °C
Interface I²C
Size (length x width x height) 2 x 2 x 0.7 millimeters

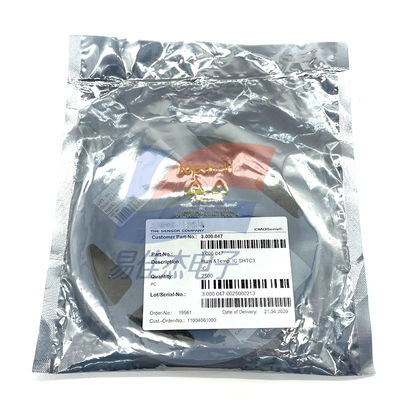

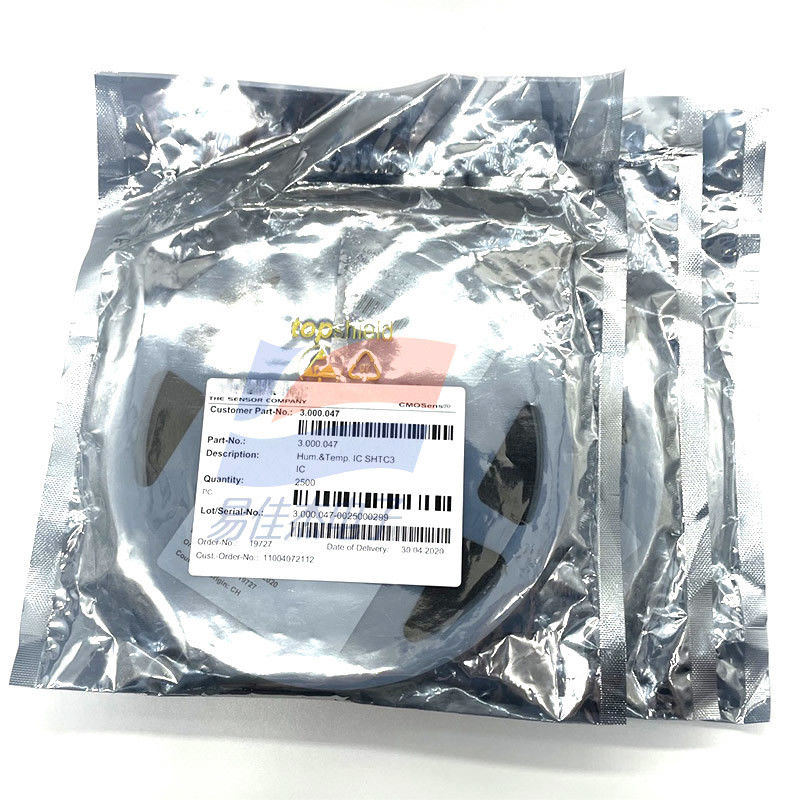

Packaging size 500 (Sampling), 1000, 10,000 pieces (T&R)
Specifications:
| Typical relative humidity accuracy | 2%RH |
| Operating relative humidity range | 0 - 100%RH |
| Response time (τ63%) | 8seconds |
| Typical temperature accuracy | 0.2 °C |
