商品の詳細:
|
| 電圧: | 05-015V | 出力: | psi(kPa) |
|---|---|---|---|
| 耐久性: | 3倍 | 瞬間圧力: | 5X |
| Usage: | -40-125 °C | 保存: | -55～150℃ |
| ハイライト: | tire pressure monitoring sensor,intake pressure sensor for TPMS,electronic pressure sensor for tires |
||
Product Description:

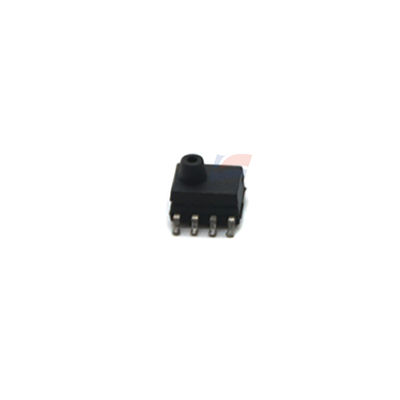

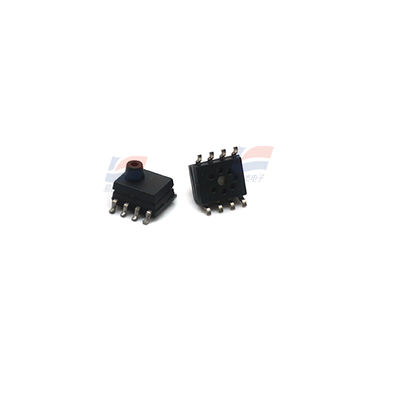

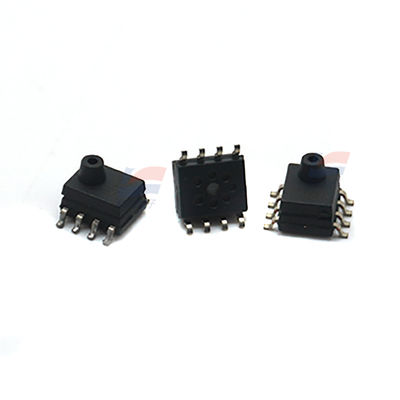

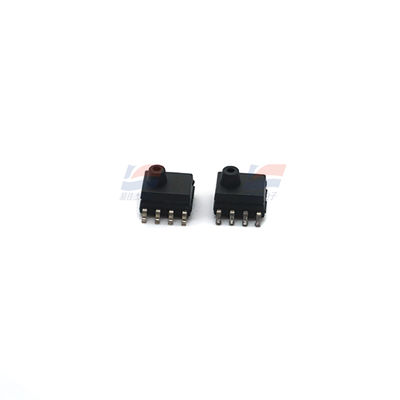

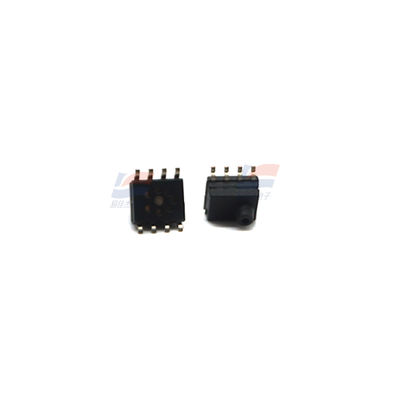

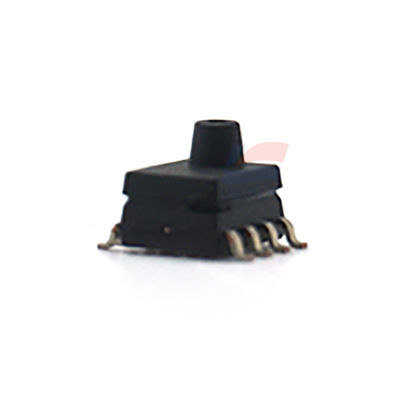

YJJ SM5420C-030A-P-T Intake Pressure Sensor Is Used In Tire Pressure Monitoring System.
Features:
SM5420C is a miniature SO-8 packaged absolute pressure sensor launched by Silicon Microstructures, Inc. (SMI), mainly targeting applications in automotive tire pressure monitoring systems (TPMS), engine control, and industrial instrumentation [1] [3-4]. This product is based on the SM5108 wafer technology and utilizes MEMS piezoresistive technology. It supports three full-scale specifications: 15 psi, 30 psi, and 100 psi, featuring high precision and adaptability to harsh environments [2].
The sensor is available in ported or vented configurations, with an optimized interface design to minimize the risk of pressure pulse impact. It offers standard gel-protected and gel-free custom versions to meet different application requirements [2-3]. The ceramic substrate is suitable for mass production and is compatible with PCB integration and O-ring installation [1-2]. The product operates at 5V, with a standard operating temperature range of 0-70°C, and some models extend to -40°C to +125°C. The output signal is based on the best linear fit algorithm at 25°C [2]. It has passed AEC-Q100 automotive certification and RoHS compliance verification, and is widely used in automated production lines and high-reliability industrial environments.
The SM5420 can be selected with a ported configuration or a vented configuration, allowing air to pass through the port or the positive positioning of the pressure source for sensing general environmental pressure or used together with an O-ring seal. The port direction is chosen to minimize the chance of direct pressure pulse impact on the pressure wafer's front surface due to long-term exposure to harsh environments. The device comes with gel as standard. For large orders requiring maximum stability, such as in air pressure stations and meteorological stations, gel-free versions are available.
Features: 15 psi, 30 psi, and 100 psi; wide operating temperature range (-40 to +125°C); suitable for automated assembly lines; ultra-low price; small package size (0.16 inches x 0.16 inches); constant current or constant voltage supply; large mV voltage output; no temperature compensation or zero-point calibration.
Specifications:
| Excitation voltage source | DC 0-5.0 10V |
| Excitation current source | DC 01-01.6 mA |
| Full-scale output PSI (kPa) | 15(103) 95-127-160mv |
| Zero-point output | -35 -035mV |
