商品の詳細:
|
| 圧力の種類: | 真空、ゲージ | 作業圧: | 1psi |
|---|---|---|---|
| 正確さ: | 0.25% | 出力型: | アナログ |
| 設置スタイル: | スルーホール | ポートタイプ: | 単軸の刺身 |
| ハイライト: | medical lever pressure sensor,electronic interface pressure sensor,YJJ CPC01GFC pressure sensor |
||
Product Description:

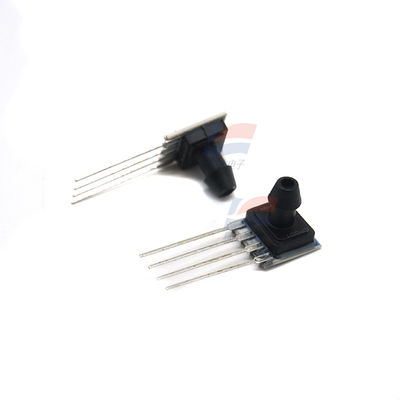

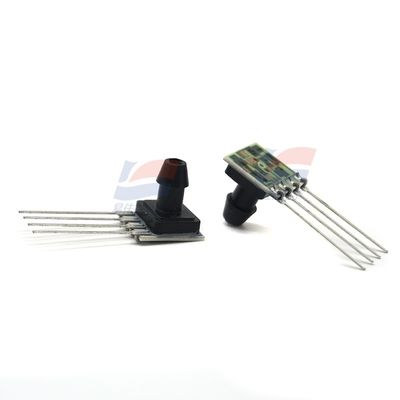

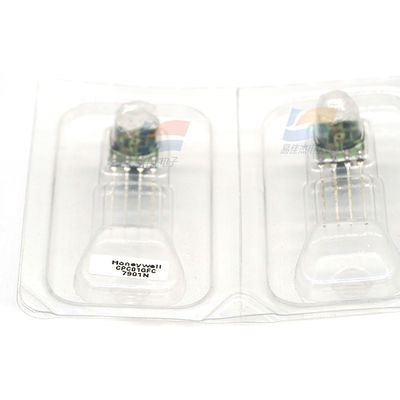

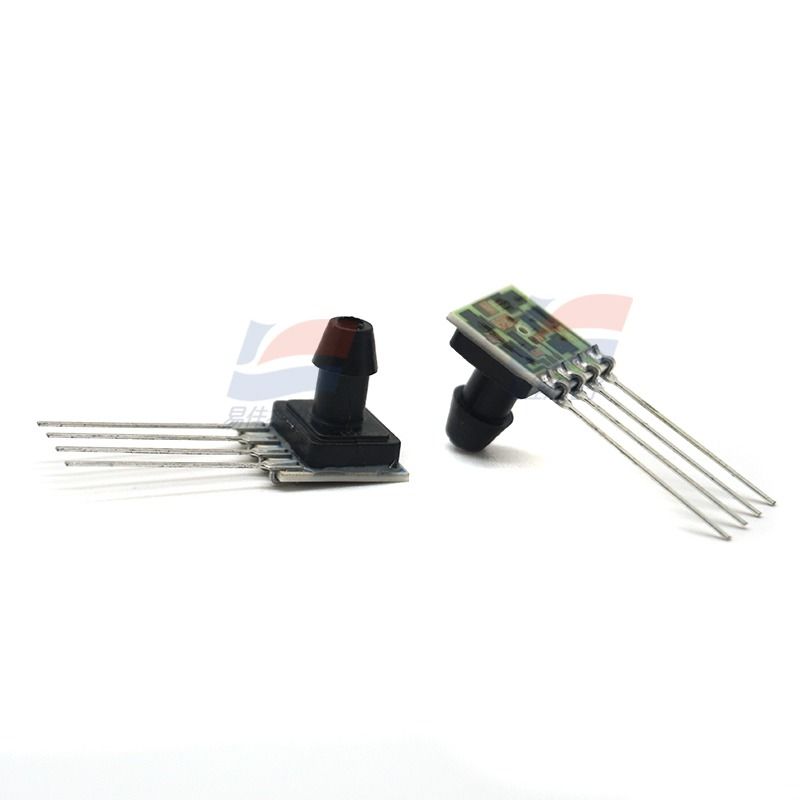

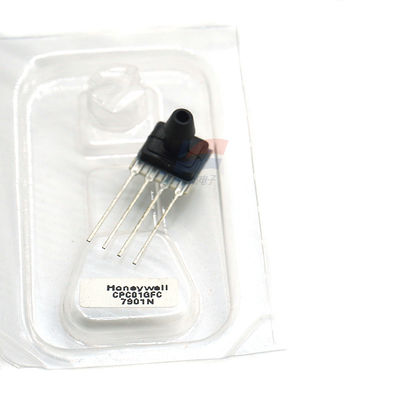

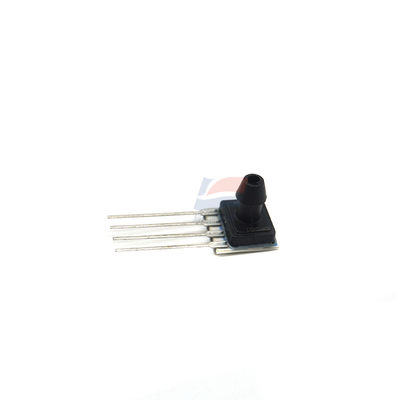

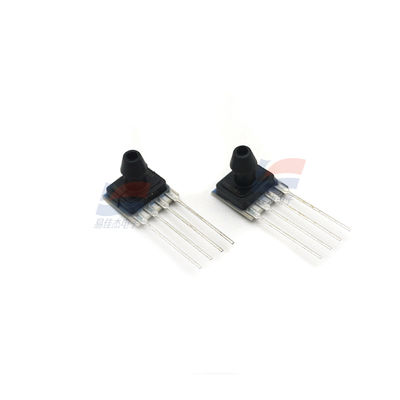

YJJ CPC01GFC lever Interface Pressure Sensor Is Used In Medical Field
Features:
Product type: Panel interface pressure sensor RoHS:
Pressure type: Vacuum, Gauge
Working pressure: 1 psi
Accuracy: 0.25 %
Output type: Analog
Installation style: Through Hole
Port type: Single Axial Barbed
Package / Housing: SIP-4
Minimum operating temperature: -25 °C
Maximum operating temperature: +85 °C
Port size: 0.08 inches
Product type: Board-mounted pressure sensors 5
Subcategory: Sensors
Power supply voltage - maximum: 16 V
Basic parameters
Pressure range: 1 PSI (34.47 kPa)
Power supply voltage: 3V to 16V
Output signal: 0 mV to 18 mV (with 12V power supply)
Temperature range: -25℃ to +85℃
Accuracy: ±2%
Package type: SIP4
Characteristics
Sensor type: Strain gauge type
Output type: Wheatstone bridge
Humidity sensitivity level: 1 (infinite)
The above parameters have been compiled based on the official data manual and the latest market information. The specific specifications may vary slightly depending on the product version.
Specifications:
| Pressure range | 1 PSI (34.47 kPa) |
| Power supply voltage | 16 V |
| Environmental adaptability | Standard |
| Interface types | 70-pin socket, UART, USB |
