商品の詳細:
|
| 圧力の種類: | 絶対的存在 | 動作圧: | 0 psiから30のpsi |
|---|---|---|---|
| 正確さ: | 0.25% | 出力型: | デジタル |
| ハイライト: | SMD pressure sensor absolute,board mount pressure sensor SMT,electronic pressure sensor SMD |
||

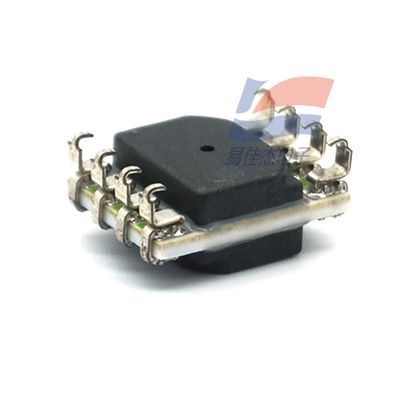

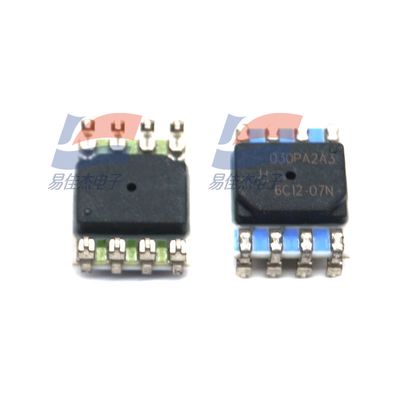

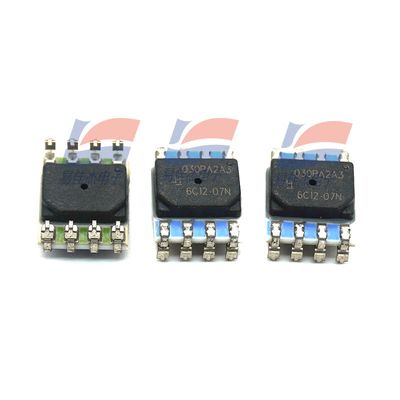

SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type
DESCRIPTION
The TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a
digital output for reading pressure over the specified full scale pressure span and temperature range.
The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects,
and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure
are updated at approximately 2 kHz.
|
Mounting Style
|
SMD/SMT |
| Interface Type | I2C |
| Operating Supply Voltage | 3 V |
| Port Type | Manifold |
| Resolution | 12 bit |
| Package / Case | SMT-8 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Supply Voltage - Max | 3.3 V |
| Supply Voltage - Min | 3 V |
