商品の詳細:
|
| 送信頻度: | 24.000-24.250GHz | 動作電圧: | 3.1-3.6V |
|---|---|---|---|
| 稼働電流: | 33mA | 動作温度: | -20°C-+65°C |
| ハイライト: | 24G microwave sensor module,security automatic control sensor,microwave module for automatic systems |
||

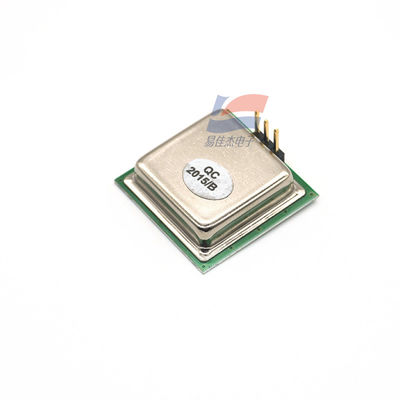

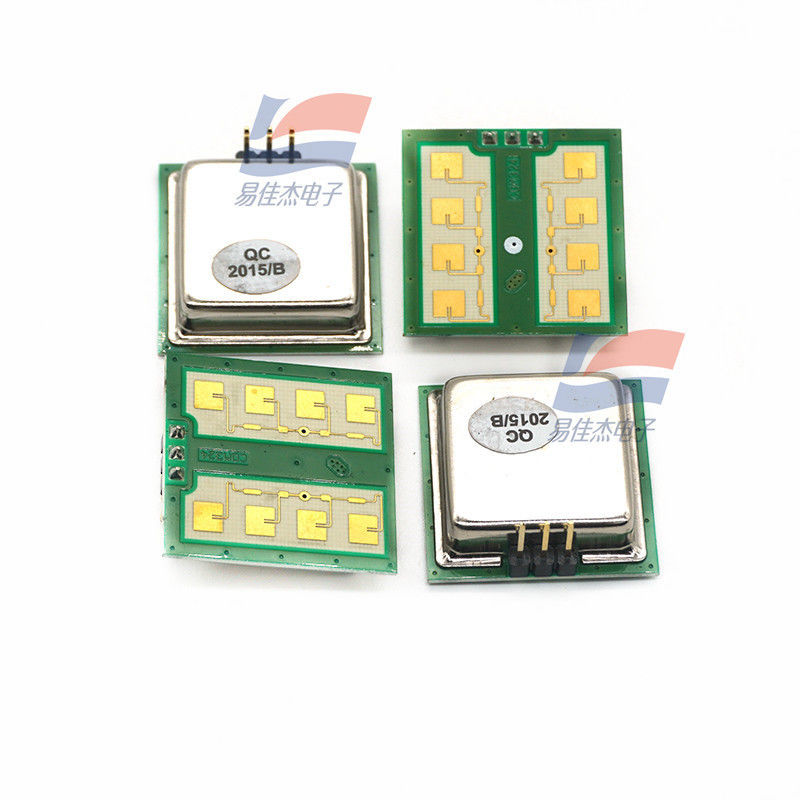

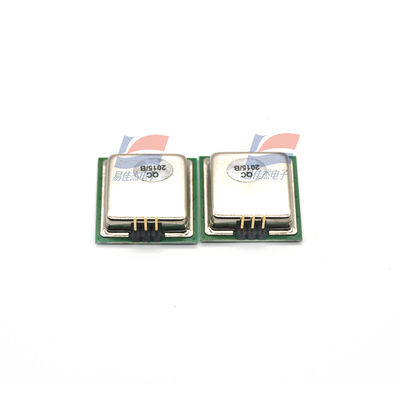

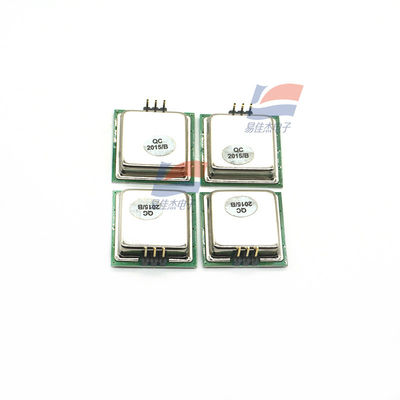

24G Microwave Module For Fields Such As Security Automatic Control
| Product Name | 24G Microwave Module |
| Transmit Frequency | 24.000 - 24.250 GHz |
| Output Power | 16 dBm |
| Operating Voltage | 3.1 - 3.6 V |
| Operating Current | 33 mA (Continuous Operation), 1.65 mA (5% Intermittent Operation) |
| Sensing Angle | Horizontal: 80°, Vertical: 32° |
| Operating Temperature | -20℃ - +65℃ |
| Dimensions | 25 mm × 25 mm × 7 mm |
