商品の詳細:
|
| Operating voltage: | 3.0±0.1 V DC | Operating current: | 28±5 mA |
|---|---|---|---|
| Typical power consumption: | 75 mW | Sampling period: | ≥ 2S |
| ハイライト: | TVOC gas sensor I2C digital,gas sensor rapid response,TVOC sensor digital output |
||

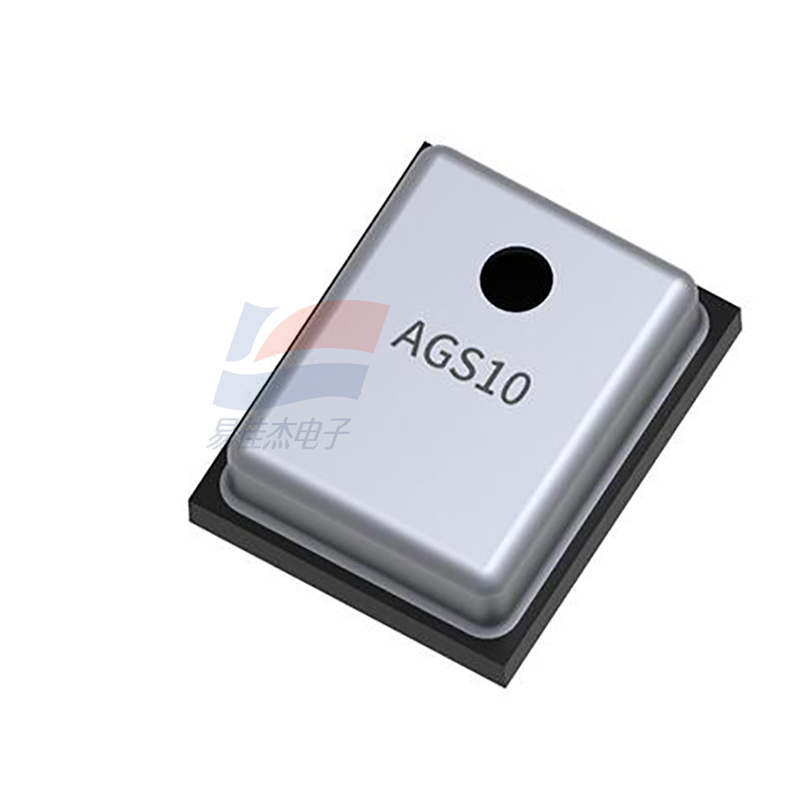

AGS10 TVOC Gas Sensors I2C Digital Output Rapid Response
TVOC Sensor
*Fully ca librated
*l2C digit al output
*Long-te rm st ability
*Rapid re sponse
*Short recovery time
*Strong anti-inte rf e rence ability
*Long lifetime
AGS10 is a high-performance TVOC sensor which is equipped with a dedicated ASICchip, adoptingspecial digital module acquisition technology and gas sensing technology, to ensure good performanceof highreliability, long-term stability, low power consumption, high sensitivity. Output signal of AGS10is standardI²C. Each sensor is fully calibrated and tested before delivery to meet the large-scale applications of customers.
Application
AGS10 is developed to detect and monitor variety of organic volatile gases, such as ethanol, ammonia, sulfide, benzene steam. It can be used in equipment, such as air purifiers, home appliances, fresh air system.
Specification
| Output mode | I2C slave mode (≤15 kHz) |
| Preheating time | 120 s |
| Working temperature | 0～50 ℃Working humidity 0～95%RH |
| Life span | >5 years |
