商品の詳細:
|
| concentration range: | 0.0 - 20 ppm | Output voltage: | 600 + 150 nA /ppm |
|---|---|---|---|
| Repeatability: | within 2% | Detection limit: | 0.1PPM |
| Response time: | 25 seconds | Operating temperature range: | -20 - +50℃ |
| ハイライト: | electrochemical gas sensor for garages,NE4-NO2 gas alarm sensor,underground garage gas detector |
||
Product Description:

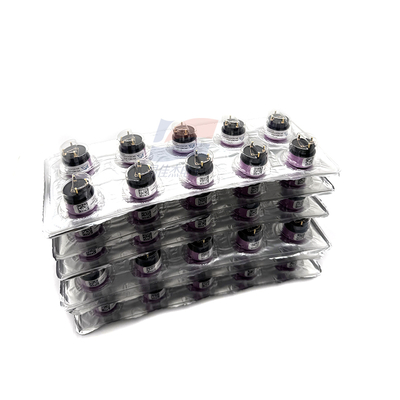

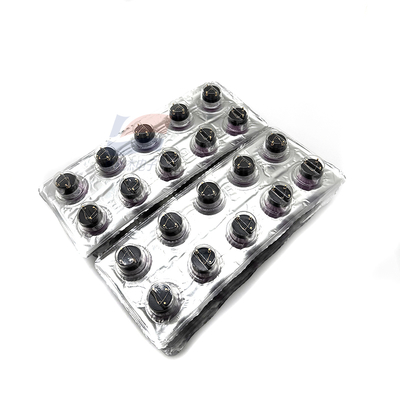

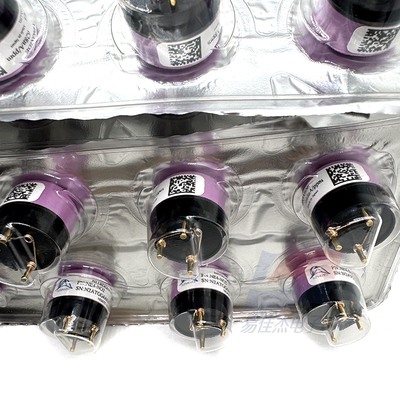

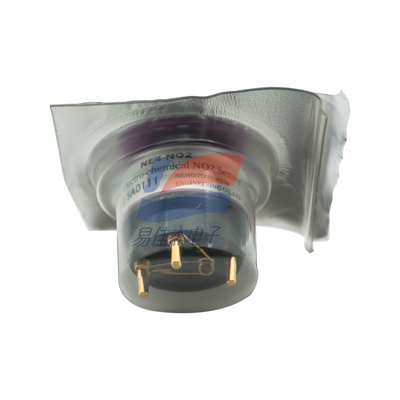

YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
Features:
NE4-N02 is an electrochemical nitrogen dioxide gas sensor developed for use in underground parking garages. Since the detected gas is an oxidizing gas, the output signal is different from that of reducing gases. It is a reverse signal, but the linearity of the signal is very good. Additionally, among the nitrogen oxide series, only nitrogen dioxide and dinitrogen tetroxide have the ability to be detected. Not all nitrogen oxides can be detected. Please note this. Characteristics
Item characteristic determination concentration range: 0.0 - 20 ppm
Output voltage: 600 + 150 nA /ppm (signal and reducing gas in opposite directions)
Repeatability: within 2%
Detection limit: 0.1 ppm
Response time: 25 seconds or less for 90% response
Zero point temperature characteristic: within 0.2 ppm (-20 - +50℃)
Operating temperature range: -20 - +50℃
Specifications:
| Measured volume | 0.1 liters (L) |
| Single response time | < 1 second (s) |
| Total response time | < 10 seconds (s) |
| DC supply voltage | 5.0 Min |
