商品の詳細:
|
| Total Visible Output: | 7475 lumens | Nominal Power: | 300 watts |
|---|---|---|---|
| Power Range: | 200 - 300 watts | Nominal Current: | 21 amps (DC) |
| Current Range: | 13 - 26.5 amps (DC) | Ignition Voltage: | 23 kilovolts |
| ハイライト: | Xenon ceramic elliptical lamp,Medical fiber optic illuminator lamp,PE300C-10F xenon lamp |
||

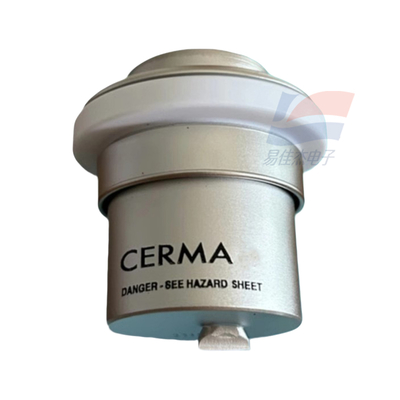

PE300C-10F Xenon Ceramic Body Elliptical Lamp For Medical Fiber Optic Illuminators
Product Overview:
The PE300C - 10F is a 300 - watt Cermax® xenon ceramic body elliptical lamp. The integrated elliptical reflector creates a converging beam, eliminating the need for secondary focusing optics. The unique oversized reflector improves light collection and maximizes the efficiency of the lamp. It is well - suited for use where small aperture sizes are required.
Applications:
Compatible Equipment:
It is compatible with Applied Fibre Optic Xenon Light Sources and the old Stryker X7000. It is also suitable for endoscopes and headlights from Gyrus/ACMI, leading medical manufacturers.
| Total Visible Output | 7475 lumens |
| Nominal Power | 300 watts |
| Power Range | 200 - 300 watts |
| Nominal Current | 21 amps (DC) |
| Current Range | 13 - 26.5 amps (DC) |
| Ignition Voltage | 23 kilovolts (recommended minimum, system - dependent) |
| Nominal Operating Voltage | 12 volts (DC) |
| Operating Voltage Range | 11.5 - 15 volts (DC) |
| Lifetime | Typically 1000 hours |
| Maximum Temperature | 150 °C |
| Radiant Output | 75 watts |
| UV Output (<390 nm) | 3.8 watts |
| IR Output (>770 nm) | 37 watts |
| Arc Gap | 0.045 inches (1.14 mm) |
| Beam Geometry (1 hour) | 0.06 |
| Beam Geometry (100 hours) | 1.5 |
| Beam Geometry (1000 hours) | 0.21 |
| Cathode Defocus 'd' | 0.005 inches (0.13 mm) |
