商品の詳細:
|
| Working voltage: | 4.75～5.25VDC | Working current: | 24±4mA |
|---|---|---|---|
| Sampling period: | ≥2s | Measurement range: | 0～30ppm |
| ハイライト: | TVOC gas sensor MEMS,small range gas sensor,responsive TVOC sensor |
||

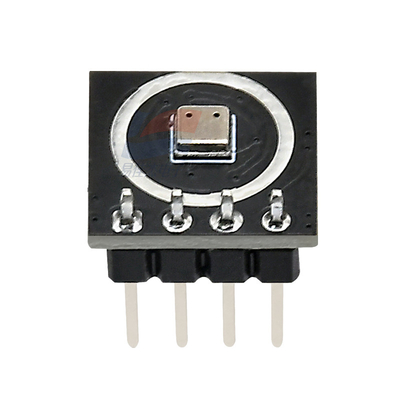

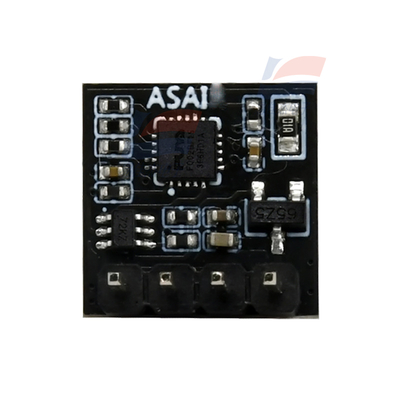

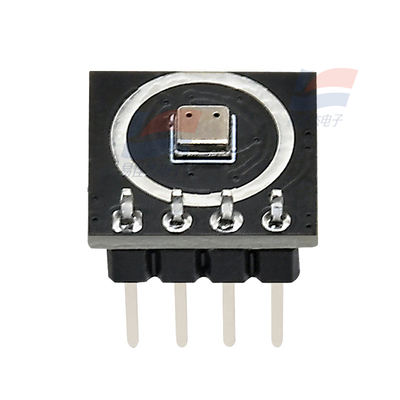

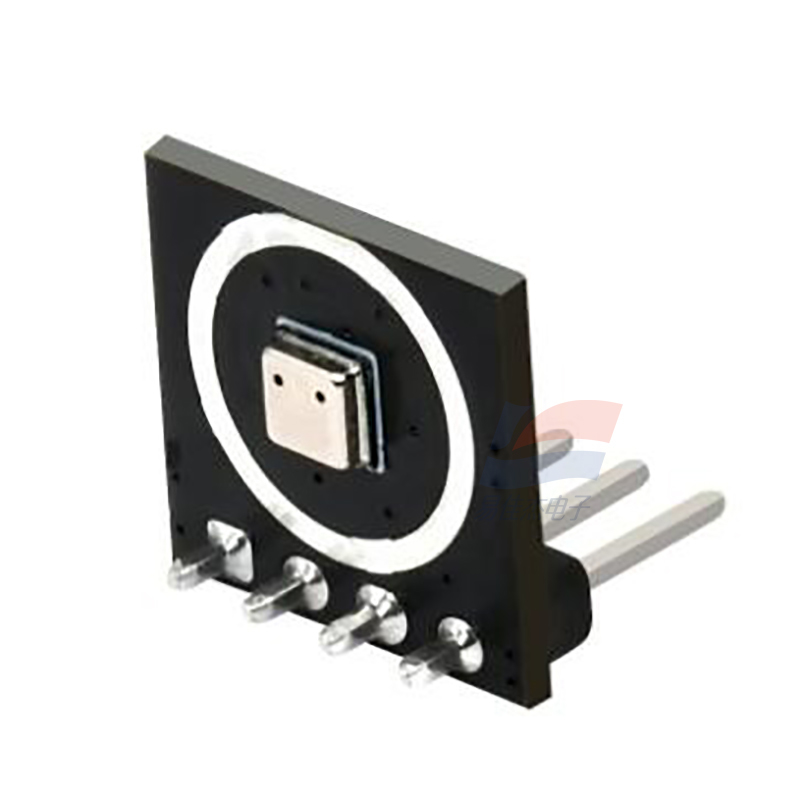

AGS2602 TVOC Gas Sensors Small Range Responsive MEMS Principles
TVOC sensor (hereinafter referred to as sensor) is a sensor based on MEMS principle, used to monitor the concentration of VOC gas in a small range. The sensor has a built-in high-performance semiconductor silicon-based resistive sensor chip, and uses dedicated digital module acquisition technology and gas induction sensing technology to ensure that the product has extremely high reliability and excellent long-term stability, with low power consumption, high sensitivity, low cost, and simple driving circuit. The sensor has been fully calibrated and tested before leaving the factory to meet customers' large-scale applications.
TVOC sensor
• High sensitivity
• Low power consumption
• Fast response
• Strong anti-interference ability
• Excellent long-term stability
• Long service life
Specification:
| Output interface | I2C |
| Typical accuracy | ±(1ppm+40%RD) |
| Warm-up time | ≥120s |
| Response characteristics | When the gas concentration is 30ppm, the response time does not exceed 30 seconds |
| Operating temperature | -25～60℃ |
| Operating humidity | 20～95%RH (no condensation) |
| Dimensions | 12mm ×12mm ×11.5mm |
| Weight About | 0.8g |
| Lifespan More than | 10 years |
