商品の詳細:
|
| Measuring range: | 0~100 ppm | Upper limit: | 200 ppm |
|---|---|---|---|
| Sensitivity: | 40±12 nAppm | Baseline (20℃): | <±10 ppm |
| ハイライト: | ANH3000 ammonia gas sensor,low power gas sensor,ammonia sensor signal output |
||

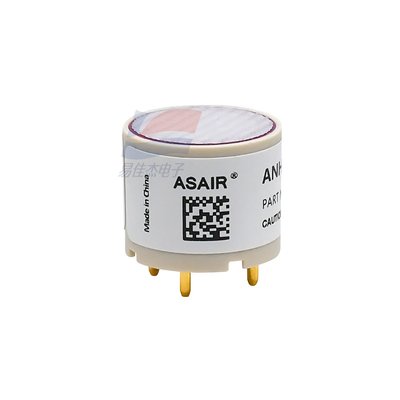

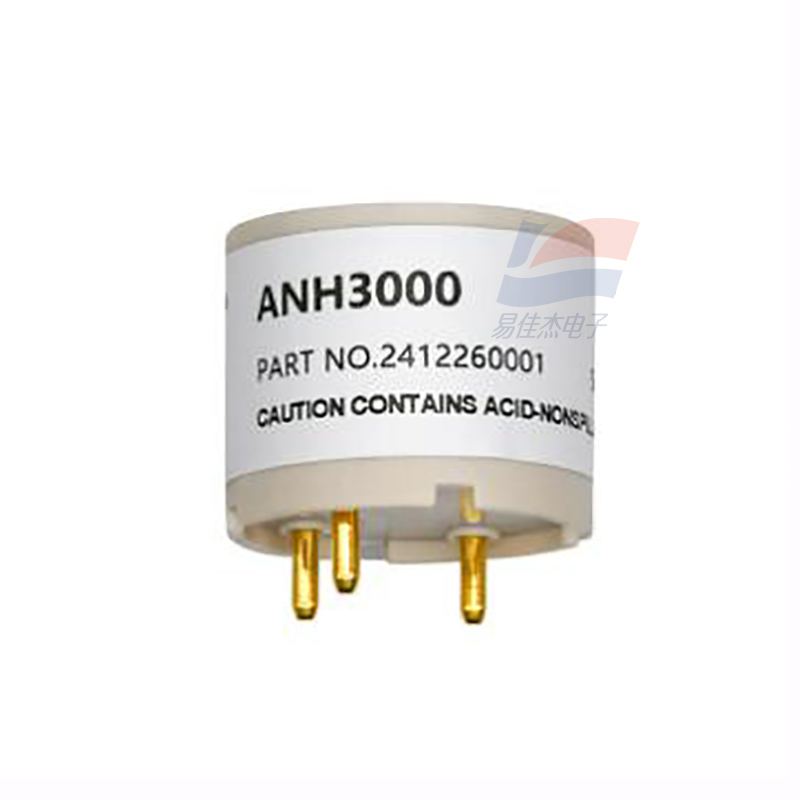

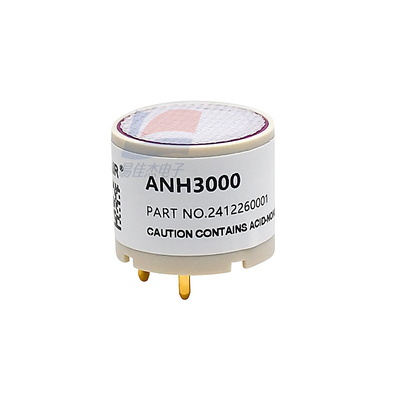

ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output
Ammonia sensor
⚫ Stable signal output
⚫ Fast response
⚫ Low power consumption
⚫ High linearity
Product Description
ANH3000 is a three-electrode electrochemical ammonia sensor that determines the ammonia concentration by measuring the redox current between electrodes.
This sensor has the characteristics of fast response and stable output signal. It can directly replace the same type of three-electrode ammonia sensor on the market, providing customers with high-quality and low-cost ammonia detection solutions.
Specification:
| Response time T90 | ≤ 90S |
| Repeatability (tested on the same day) | ≤ 10% |
| Long-term output drift | <±2%/month |
| Zero drift | <±10ppm/year |
| Expected life | 24 months |
| Temperature dependence | <±15ppm |
