商品の詳細:
|
| Principle: | Partial Pressure Electrochemical | Output Current: | 295~700uA(in air) |
|---|---|---|---|
| MEAS. Range: | 0~10ppm(min) | Response Time: | T90 <7s |
| ハイライト: | AOP10 micro oxygen sensor,electrochemical gas sensor,low detection limit oxygen sensor |
||

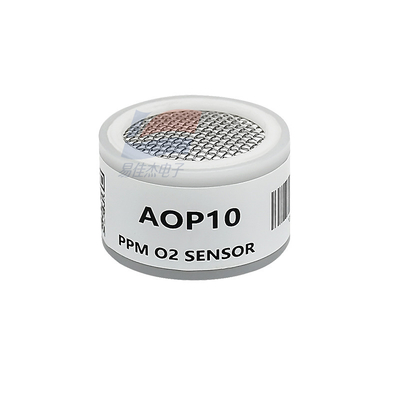

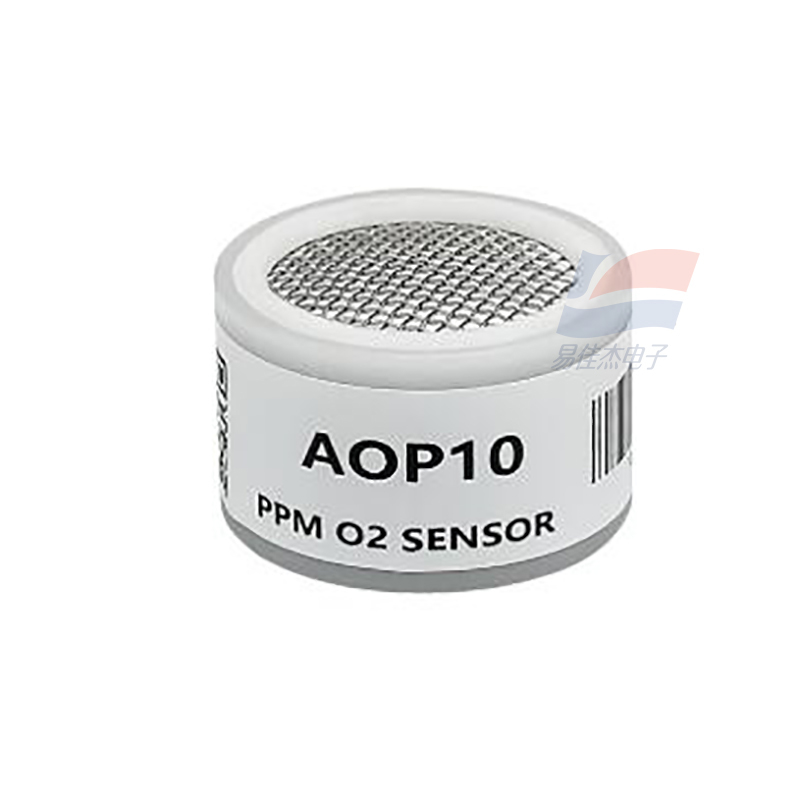

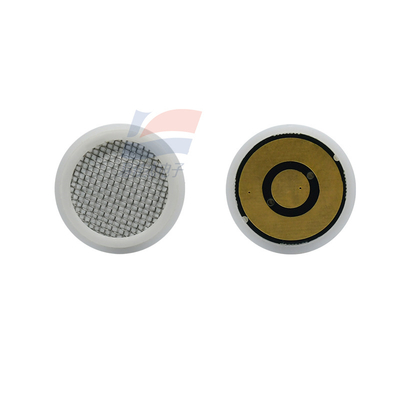

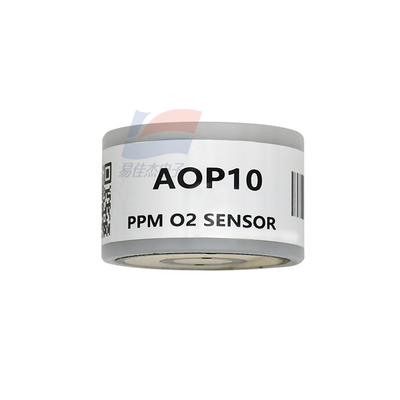

AOP10 Micro Oxygen Sensor Low Detection Limit Electrochemical Fast Response
The AOP10 PPM Micro Oxygen Sensor is an electrochemical sensor based on the partial pressure electrochemical principle. it measures oxygen concentration by detecting output current and features fast response, high stability, and precise detection of ppm
to ppb-level trace oxygen concentrations, meeting high-precision measurement requirements.
Datasheet:
| Accuracy | ±2% F.S. |
| Drift (%Monthly) | <1% |
| Temp. Effect | 3.0%/C |
| Expected Lifetime | 18~24 months |
| Warranty Period | 12 months |
