商品の詳細:
|
| Operating voltage: | 12.5V (DC) | Range: | 11 - 14V |
|---|---|---|---|
| Operating current: | 14A (DC) | High-voltage pulse: | 23,000V |
| Luminous flux: | 2200lm | Daylight color temperature: | 5600K - 5800K |
| ハイライト: | YJJ PE175BFA endoscope xenon lamp,STORZ laparoscopic xenon lamp,cold light source endoscope lamp |
||
Product Description:

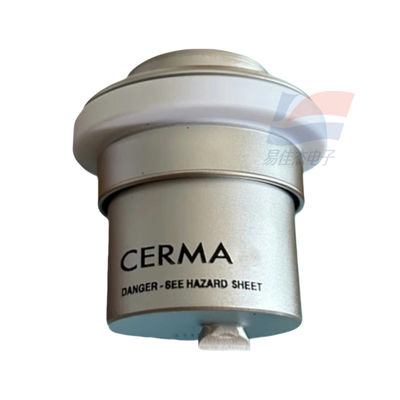

YJJ PE175BFA Cold Light Source Endoscope Xenon Lamp Storz STORZ Laparoscopic Endoscope Xenon Lamp
Features:
I. Electrical and Optical Parameters
Rated Power
175W, specially designed for high-precision endoscopic surgeries, providing high-intensity cold light source illumination .
Voltage and Current
Operating Voltage: 12.5V (DC), allowable range 11 - 14V ;
Operating Current: 14A (DC), allowable range 12 - 16A ;
Starting requires high-voltage pulse: 23,000V .
Optical Performance
Luminous Flux: 2200lm, close to daylight color temperature (5600K - 5800K) 27;
Ultra-high color rendering, ensuring true colors and clear details in the surgical field .
II. Physical and Compatibility
Compatible Systems
Compatible with STORZ Laparoscope (Model 615 B/C/XE), Olympus CLV Series, Fujinon, Pantex, etc. mainstream endoscopic cold light source systems ;
Standardized interface, convenient replacement (requires applying conductive silicone grease) .
Size and Heat Dissipation
Lamp Body Length: 87mm ;
Built-in efficient heat dissipation structure, maximum temperature resistance 150°C 46.
️ III. Lifespan and Stability
Effective Lifespan: 500 hours, supporting long-term surgeries without brightness attenuation ;
Interference Resistance: No flicker or brightness fluctuations during operation, avoiding frequent parameter adjustments during surgery ;
Industrial-grade Sealing: Sapphire transparent mirror surface + ceramic base, dust-proof and shock-proof
Specifications:
| Xenon lamp power | 1800W per unit |
| Total power exceeds | 10kW |
| Irradiance reaches | 300-800W/m² |
| Spectral range | 280-800nm |
