商品の詳細:
|
| 動作電圧: | DC (5.0±0.1)V、リップル <50mV | 稼動電流: | 平均電流 <45mA |
|---|---|---|---|
| 典型的な力: | 100mW @5V | 測定範囲: | 400～5000ppm |
| ハイライト: | dual channel NDIR CO2 sensor,infrared carbon dioxide sensor,stable NDIR gas sensor |
||

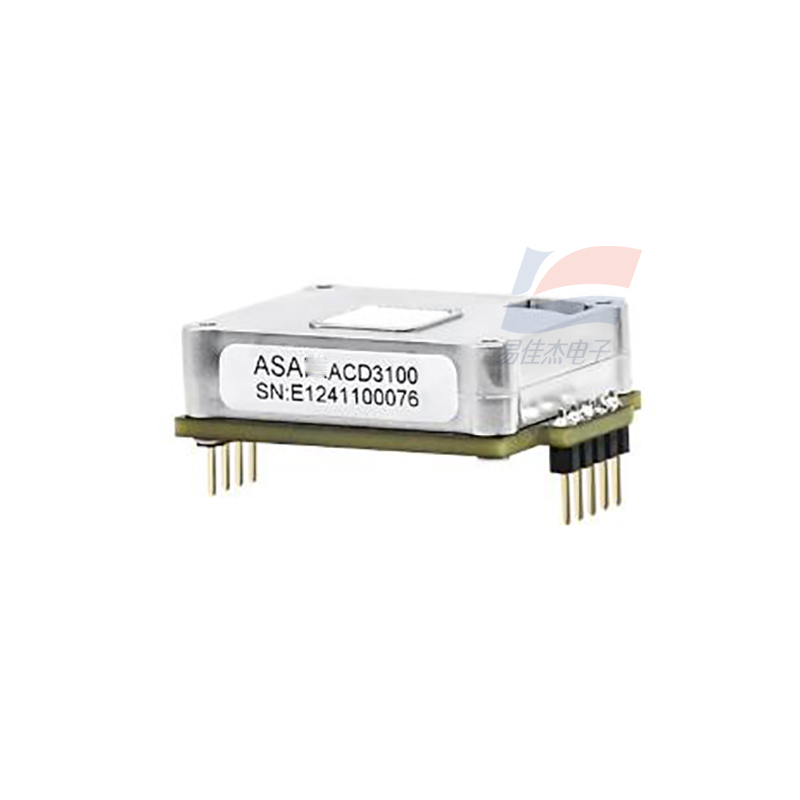

ACD3100 Dual Channel Infrared Carbon Dioxide Sensor NDIR Good stability
Dual-channel infrared CO2 sensor
• Excellent long-term stability
• Excellent selectivity
• No oxygen dependence
• Standard digital output
• Fast response and recovery
• Strong anti-interference ability
• Dual-channel design with better stability
ACD3100 detects the concentration of carbon dioxide in the air based on the non-dispersive infrared (NDIR) principle. ACD3100 has the advantages of excellent selectivity, no oxygen dependence and long life. It combines integrated infrared absorption gas detection technology, precision optical path design and high-precision dual-channel signal detection circuit to ensure the accuracy and reliability of the measurement results. In addition, it is also equipped with a digital interface output, providing users with convenient data reading and interactive experience.
| Accuracy | ± (50ppm + 3% reading) |
| Warm-up time | 120s |
| Operating conditions | -10℃～50℃; 0～95%RH (non-condensing) |
| Storage conditions | -20℃～60℃; 0～95%RH (non-condensing) |
| Data refresh frequency | 2s |
| Service life | ＞10 years |
