商品の詳細:
|
| 発光表面: | 2.4 × 2.4 mm | パッケージ: | 金属 |
|---|---|---|---|
| パッケージタイプ: | to-5 | 冷却: | 非冷却タイプ |
| 逆電圧: | 30V | 最大感度波長: | 960 nm |
| 写真感度: | 0.6A/W | 暗電流: | 5 pA |
| ハイライト: | Japanese photodiodes analytical equipment,optical measurement equipment photodiodes,infrared photoelectric sensor photodiodes |
||
Product Description:

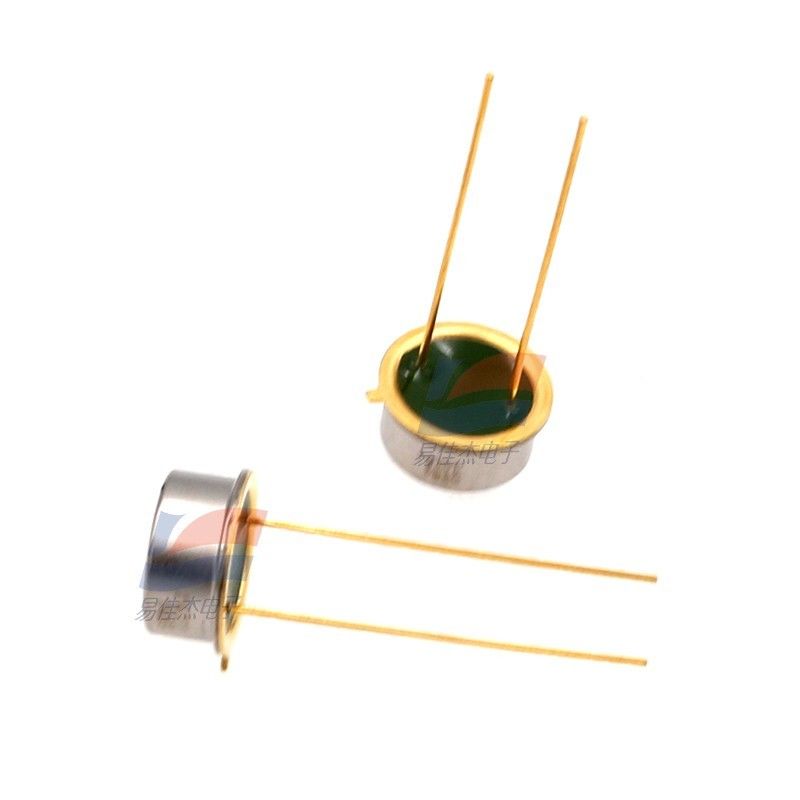

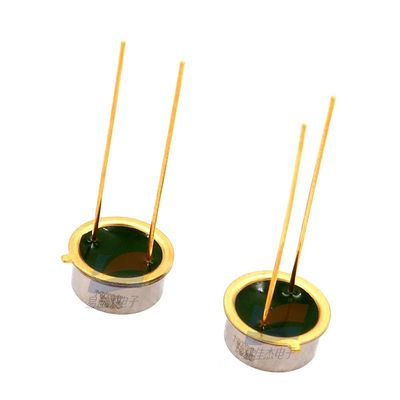

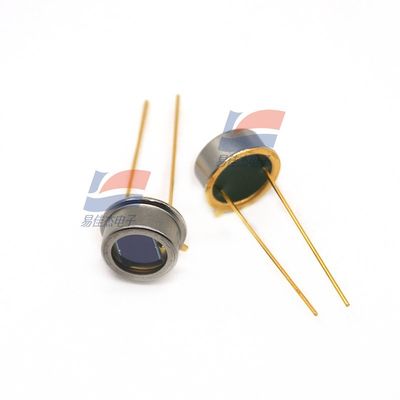

YJJ S2386-5K Analytical Equipment Optical Measurement Equipment Japanese Photodiodes
Features:
Suitable for the visible light to near-infrared wavelength range, universal photometer
Characteristics
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
Detailed parameters
Light-receiving surface 2.4 × 2.4 mm
Package Aluminum
Package category TO-5
Cooling Non-cooled type
Reverse voltage (maximum value) 30 V
Spectral response range 320 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photo-sensitivity (typical value) 0.6 A/W
Dark current (maximum value) 5 pA
Rise time (typical value) 1.8 μs
Capacitance at the junction (typical value) 730 pF
Noise equivalent power (typical value) 9.6×10-16 W/Hz1/2
Measurement conditions Typical value Ta = 25°C, photo-sensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, noise equivalent power: VR = 0 V, λ = λp, unless otherwise specified
Specifications:
| Light-emitting surface | 2.4 × 2.4 mm |
| Package | Plastic |
| Cooling | Non-cooling type |
| Reverse voltage (maximum value) | 20V |
