商品の詳細:
|
| わずかな範囲: | 0 ~ 10 ppm | 最大過負荷: | 100ppm |
|---|---|---|---|
| 敏感度 (20°C): | 0.3 ± 0.1 μA/ppm | 応答時間（T90）: | ≤35秒 |
| ハイライト: | 4 electrode carbon monoxide sensor,CO gas sensor for air quality,carbon monoxide air monitoring sensor |
||

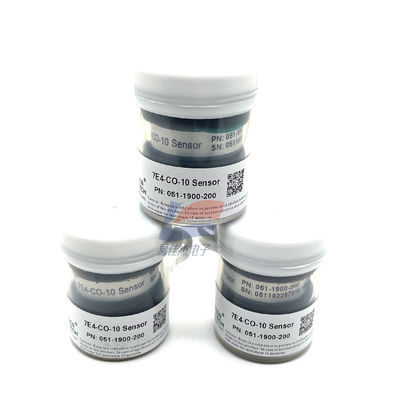

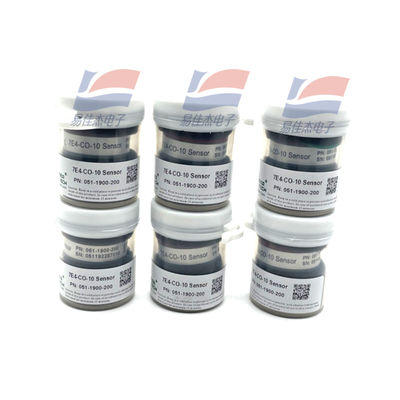

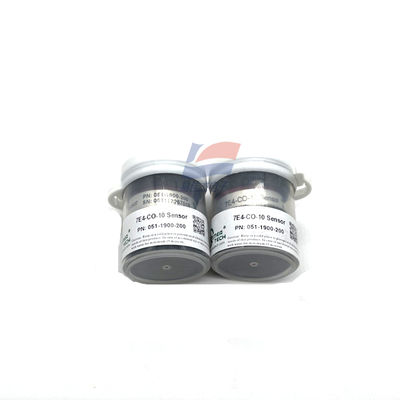

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring
This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration CO gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect CO variations at parts per billion (ppb) levels.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±100 nA |
| Baseline Shift | (-40℃ ~ 50℃) < 200 ppb (After compensation) |
| Resolution | 15 ppb |
| Linearity | Linear up to 10 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 10% signal/year |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
