商品の詳細:
|
| わずかな範囲: | 0〜20 ppm | 最大過負荷: | 100ppm |
|---|---|---|---|
| 敏感度 (20°C): | -0.8±0.2μAppm | 応答時間（T90）: | ≤30s |
| ハイライト: | Nitrogen Dioxide Gas Sensor 20PPM,Electrochemical NO2 Gas Sensor,20PPM Nitrogen Dioxide Sensor |
||

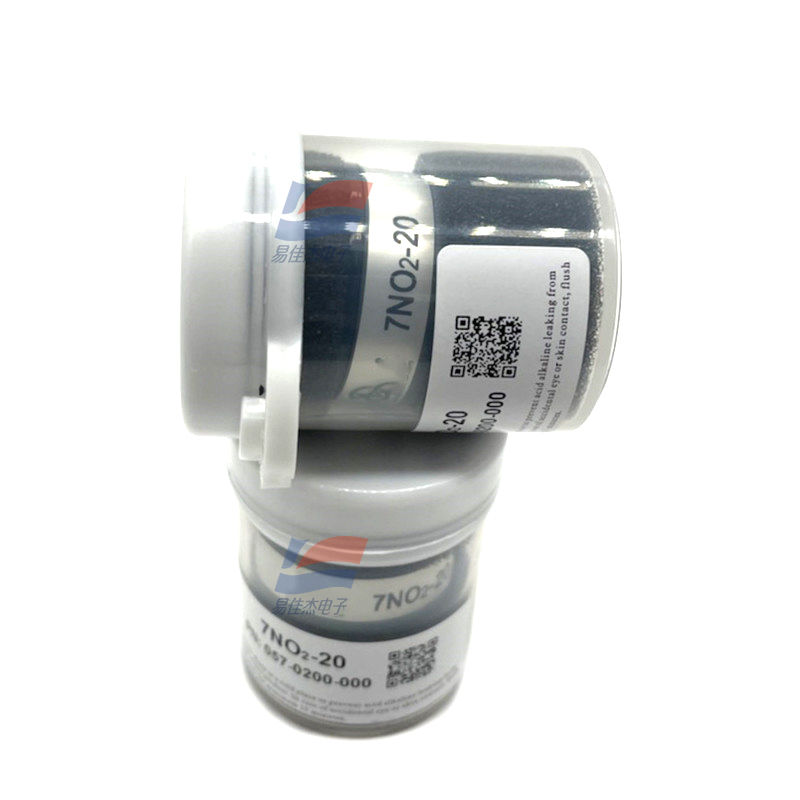

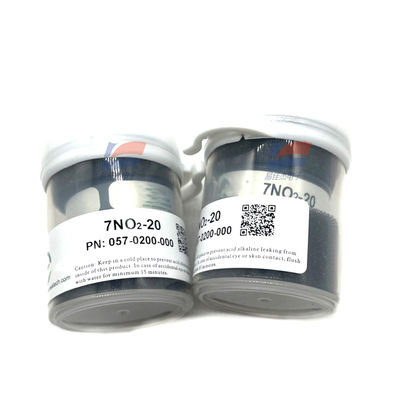

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical
Description
This sensor is designed for the measurement of Nitrogen Dioxide concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Nitrogen Dioxide sensors made by other manufacturers.
Performance Characteristics
| Baseline Shift (-40°C~50°C) | <0.5 ppm |
| Resolution | 0.005 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -40°C-50°C |
| Pressure Range | 1 + 0.1 atm |
| Humidity Range | 15%~90%RH non-condensing |
