商品の詳細:
|
| 範囲: | 0-100 ppm | 最大過負荷: | 200 ppm |
|---|---|---|---|
| 解決: | <0.1ppm | 応答時間: | T90 <30秒 |
| 温度範囲: | -40°Cへの50°C | 湿度の範囲: | 15% - 90% RH |
| 圧力範囲: | 大気圧±10％ | アウトプット信号: | 200±80 na/ppm |
| ハイライト: | CS2 gas sensor for safety detection,CF-100 carbon disulfide sensor,process gas sensor with warranty |
||
Product Description:

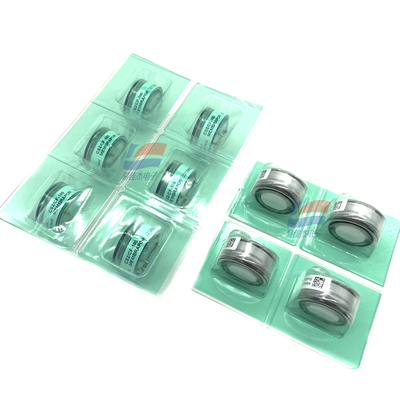

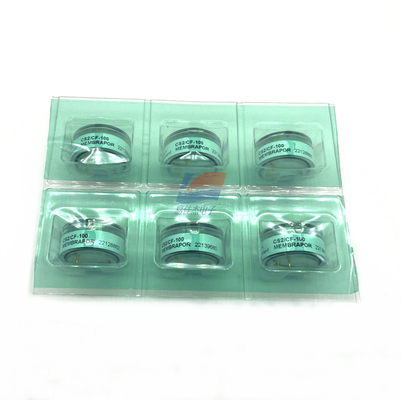

YJJ CS2/CF-100 Carbon Disulfide Gas Sensor For Safety Process Detection
Features:
Main parameters of the CS2/CF-100 gas sensor are as follows:
Core parameters
Range: 0 - 100 ppm
Maximum overload: 200 ppm
Resolution: < 0.1 ppm
Response time: T90 < 30 seconds
Temperature range: -40°C to 50°C
Humidity range: 15% - 90% RH
Pressure range: Atmospheric pressure ±10%
Performance indicators
Output signal: 200 ± 80 nA/ppm
Load resistance: 10 - 33 Ω
Life span: Approximately 2 years in the air.
Application Instructions
This product is suitable for industrial gas detection. Please be aware that high concentrations of interfering ions (such as trivalent aluminum ions and trivalent sodium ions) may affect the measurement accuracy.
Specifications:
| Maximum overrun range: | 0-100ppm |
| Signal output: | 0.1 0.02mA |
| Response time (T90) | < 15s |
| Load resistance | 100 Ω |
