商品の詳細:
|
| わずかな範囲: | 0〜20 ppm | 最大過負荷: | 20 PPM |
|---|---|---|---|
| 敏感度 (20°C): | 0.45+0.10μavppm | 応答時間（T90）: | ≤90s |
| ハイライト: | 7SO2-20 sulfur dioxide gas sensor,electrochemical gas sensor 20ppm,7 series sulfur dioxide sensor |
||

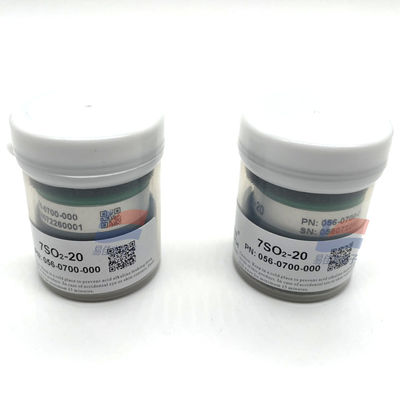

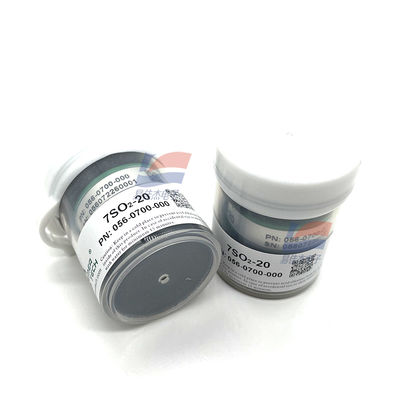

7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM
Description
This sensor is designed for the measurement of Sulfur Dioxide concentration in the gas phase with no sensitivity loss over time and no cross-sensitivity from H2S. It can be used as a replacement for the standard 7-series EC Sulfur Dioxide sensors available on the market.
Performance Characteristics
| Zero Signal (20°C) | < +0.2 μA |
| Baseline Shift (-20°C~60°C) | <0.5 ppm |
| Resolution | 0.01 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -20°C-60°C |
| Pressure Range | 1 +0.1 atm |
| Humidity Range | 5%~95%RH non-condensing |
