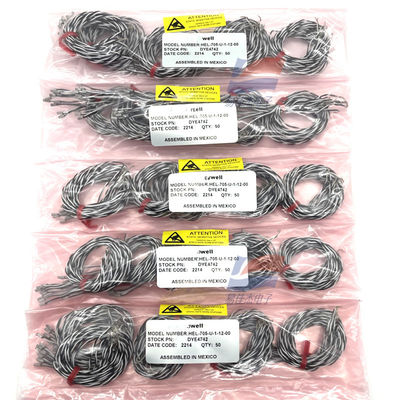

HEL-705-U-1-12-00 Precision Temperature Sensor For Automotive Field Industrial Manufacturing

                 HEL-705-U-1-12-00 Precision Temperature Sensor For Automotive Field Industrial Manufacturing

Key Features:

1. Wide Temperature Coverage: It is capable of measuring temperatures within a broad scope, with an operating temperature range spanning from -200°C to 260°C .
2. High - Precision Detection: It has good linearity, and the overall measurement accuracy can reach ±2% within the temperature range of -75°C to 540°C .
3. Stable and Consistent: Its resistance value changes in a linear fashion with temperature variations, which can ensure stable data output during the temperature measurement process .
4. Analog Voltage Signal Output: The sensor outputs an analog voltage signal, which is convenient for subsequent signal conditioning and processing by external circuits .
5. Simple Interface: Adopts a 2 - wire serial communication interface, which can easily realize communication connection with common microcontrollers .
6. Good Electrical Indexes: Its nominal supply current is 2mA, the working supply current is 1mA, and the insulation resistance is as high as 50MΩ .
7. Compact Package: It is encased in a ceramic housing, with a 2 - pin lead - out structure, and the pin - to - pin distance is in line with the DIP - 16 specification. The length of the lead wire is 12 inches (about 300mm), which is convenient for installation in various spatial positions .
8. Meet Environmental Requirements: The product complies with the RoHS directive, which is environmentally friendly .

Application Areas:

• Automotive Field: It is used for engine coolant temperature measurement, air intake temperature monitoring in the cab, and battery pack ambient temperature detection of new - energy vehicles.
• Industrial Manufacturing: Applicable to temperature detection in industrial furnaces, temperature monitoring in the production process of chemical reaction kettles, and ambient temperature measurement in warehouses storing industrial materials.
• HVAC Systems: It can detect the temperature of the return air and supply air of the air - conditioning unit, and monitor the indoor and outdoor ambient temperature, providing data support for the accurate regulation of the temperature of the HVAC system .

Precautions for Use:

• When welding the lead wires, the soldering iron temperature should not be too high, and the soldering time should be strictly controlled to avoid damage to the internal structure of the sensor due to over - temperature.
• Keep a certain distance between the sensor and heat - generating components such as large - power resistors and power transistors to prevent local high - temperature interference from affecting the measurement accuracy.
• If the sensor is used in an environment with electromagnetic interference, it is necessary to shield the lead wires to prevent electromagnetic signals from coupling into the sensor's output signal and causing distortion.
