商品の詳細:
|
| パッケージ: | TO-8 | 光敏感領域の大きさ: | 5.8*5.8mm |
|---|---|---|---|
| 逆電圧 VR マックス: | 5V | 動作温度: | -40〜+100°C |
| ハイライト: | UV photodiode sensor with suppressed IR,Si photodiode for UV to visible,S1226-8BK photodiode near IR suppressed |
||

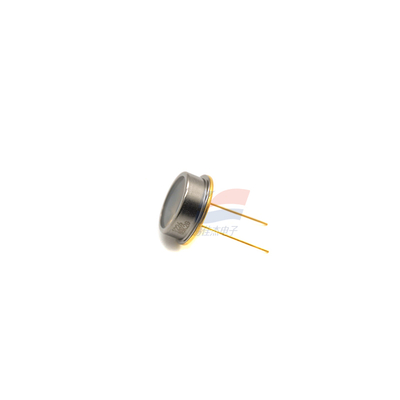

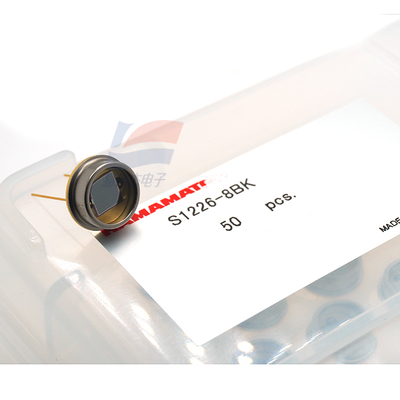

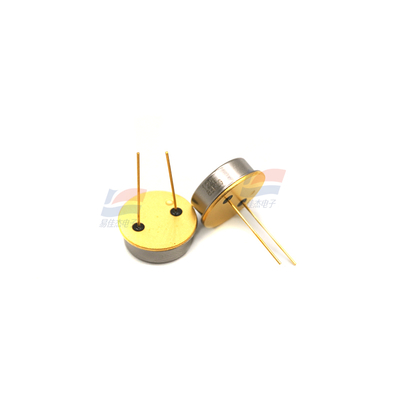

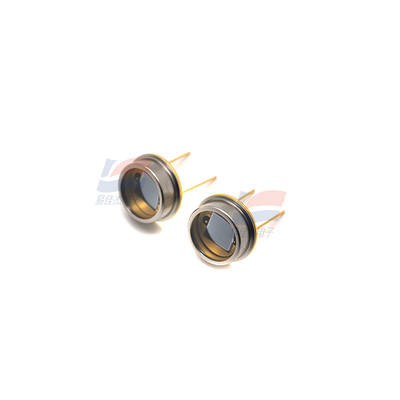

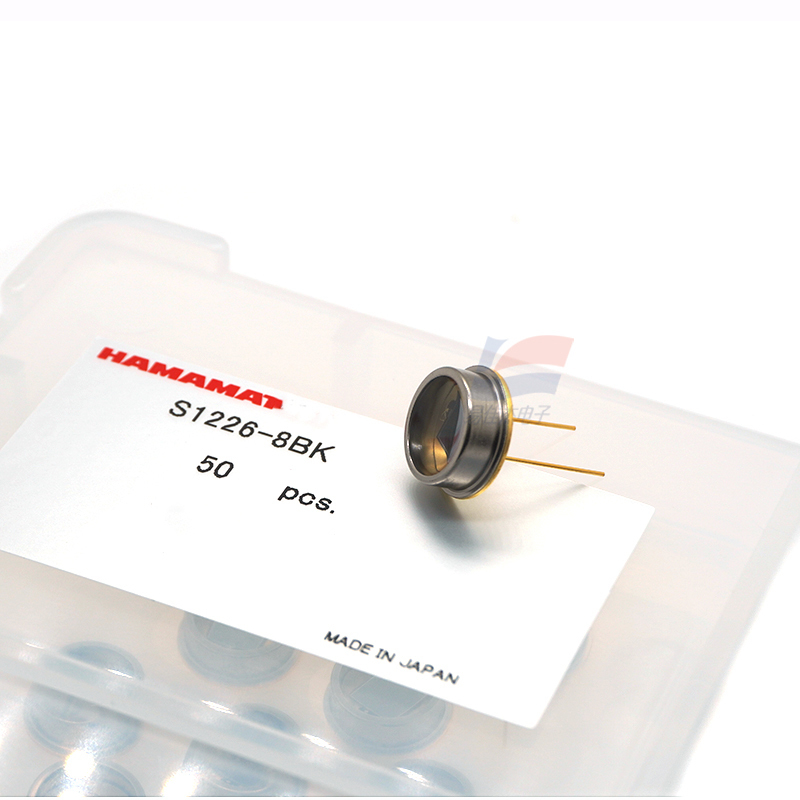

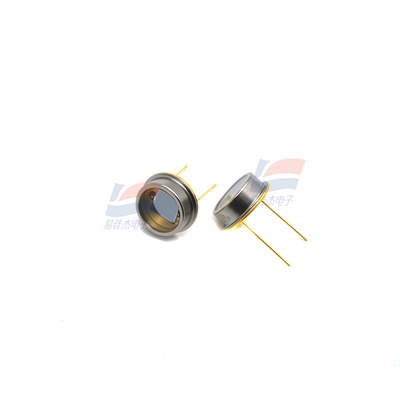

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible
Features
Suppressed near IR sensitivity
High sensitivity in UV region (quartz glass type)
Low dark current
High reliability
Applications
>Analytical equipment
>Optical measurement equipment, etc.
Specification:
|
Spectral response range
|
320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 720 nm |
| Photosensitivity (typ.) | 0.36 A/W |
| Dark current (max.) | 20 pA |
| Rise time (typ.) | 2 μs |
| Terminal capacitance (typ.) | 1200 pF |
| Noise equivalent power (typ.) | 5.0×10-15 W/Hz1/2 |
