商品の詳細:
|
| 検出精度: | ±3％fs | 検出制限: | 5 PPM |
|---|---|---|---|
| 再現性: | 3％ | 動作温度範囲: | -40 ℃〜70℃ |
| サービスライフ: | 10年 | 検出原理: | バッテリーの原則 |
| ハイライト: | Micro fuel cell hydrogen sensor,Portable gas detection sensor,Hydrogen gas sensor with warranty |
||
Product Description:

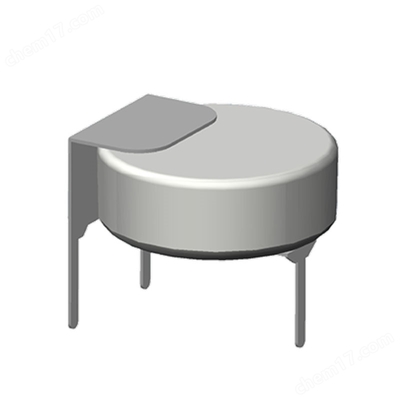

YJJ FC-H2-5000 Micro Fuel Cell Type Hydrogen Gas Sensor Is Used In Portable Gas Detection Instruments
Features:
Main parameters of the FC-H2-5000 hydrogen sensor are as follows:
Core parameters
Detection range: 0 - 5000 ppm (can be extended to 10000 ppm)
Detection limit: 5 ppm
Response time: < 60 seconds (±3% FS)
Detection accuracy: ±3% FS (linear output)
Sensitivity: 0.4 ± 0.2 nA/ppm
Operating temperature range: -40℃ to 70℃
Service life: ≥ 10 years in normal environment
Other key indicators
Anti-interference capability: Capable of withstanding high levels of interference from cross-gases such as carbon monoxide.
Stability: Long-term use results in a drift of ≤ 3% FS.
Weight: Only 3 grams (button-style design)
Humidity range: 10% - 90% (non-condensing)
Notes for Attention
Avoid contact with organic solvents or corrosive gases.
Prohibit exposure to environments with high concentrations of the measured gas.
Do not subject the sensor to excessive vibration or disassembly.
Specifications:
| Detection principle | Principle of micro fuel cell |
| Range | 0 - 5000 ppm |
| Maximum overload | 10,000 ppm |
| Sensitivity | 0.4 ± 0.2 nA/ppm |
| Response time | < 60 seconds |
