商品の詳細:
|
| 感光性区域: | 2.4 × 2.4 mm | パッケージ: | セラミック |
|---|---|---|---|
| 冷却: | 冷却されていない | 逆電圧 (最大): | 5 v |
| ハイライト: | UV photodiode sensor for precision photometry,silicon photodiode sensor UV to visible,S1227-33BR photodiode sensor with warranty |
||

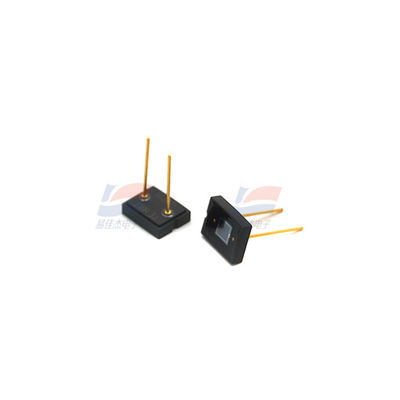

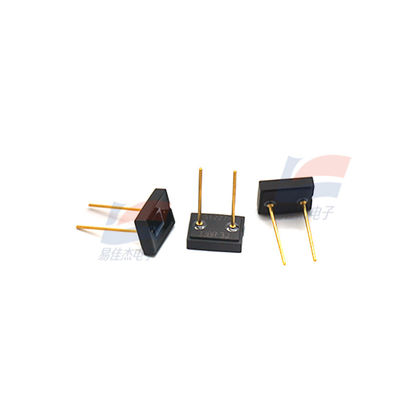

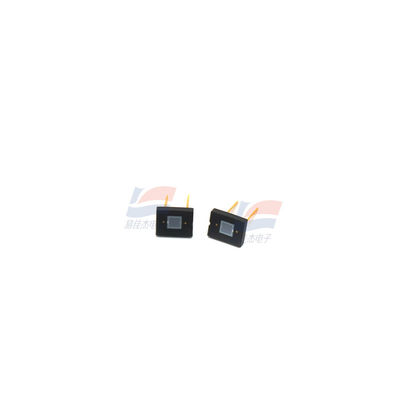

S1227-33BR Si Photodiode Sensors For UV to Visible Precision Photometry Silicon
Features:
High uV sensitivity (quartz window type): QE 75 % (λ=200 nm)
Suppressed IR sensitivity
Low dark current
Applications:
Analytical equipment
Optical measurement equipment, etc.
Specification:
|
Spectral response range
|
340 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 720 nm |
| Photosensitivity (typ.) | 0.43 A/W |
| Dark current (max.) | 5 pA |
| Rise time (typ.) | 0.5 μs |
| Terminal capacitance (typ.) | 160 pF |
| Noise equivalent power (typ.) | 2.1×10-15 W/Hz1/2 |
