商品の詳細:
|
| 湿度測定範囲: | 0 | 100%のRH | 湿気の測定の正確さ: | ±2％RH（25℃、20～80％RHにて） |
|---|---|---|---|
| 湿気の決断: | 0.024%RH | 温度測定範囲: | -40 | +80°C |
| 温度の決断: | 0.01°C | 供給電圧: | DC2.0～5.5V |
| ハイライト: | HVAC humidity temperature sensor,dehumidifier testing sensor,measuring equipment temperature sensor |
||

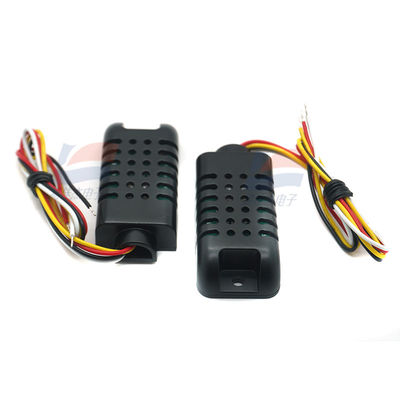

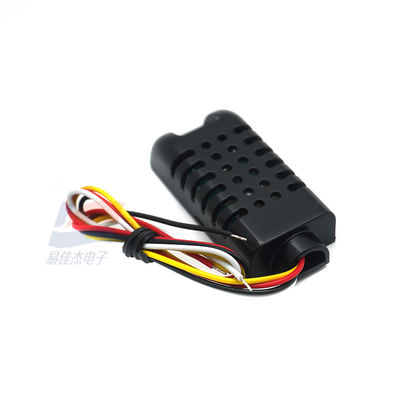

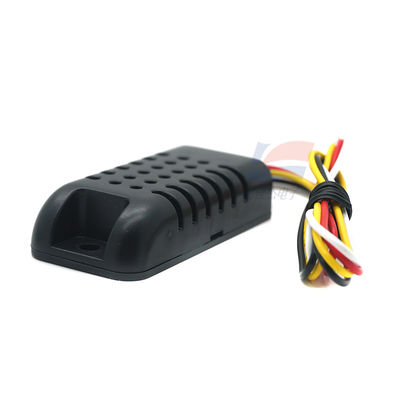

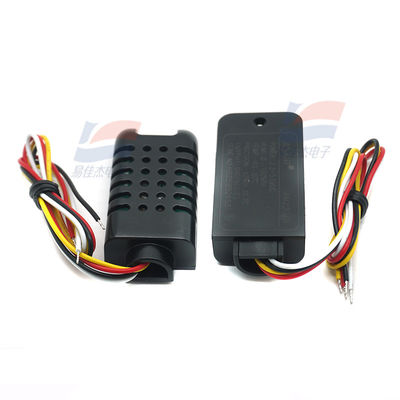

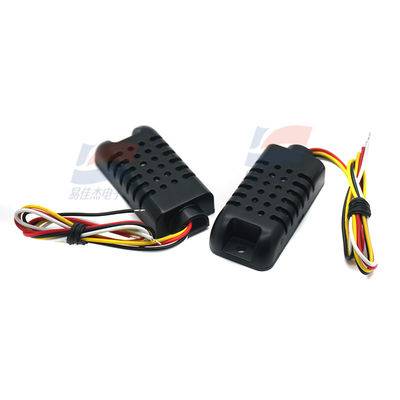

AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment
General Description:
The AM2301B is a digital humidity and temperature composite sensor with calibrated digital signal output. It combines advanced sensing technology with digital processing to provide high reliability and excellent long-term stability in various environmental conditions.
Features:
Applications:
| Humidity Measurement Range | 0 ~ 100% RH |
| Humidity Measurement Accuracy | ±2% RH (at 25°C, 20~80% RH) |
| Humidity Resolution | 0.024% RH |
| Temperature Measurement Range | -40 ~ +80°C |
| Temperature Measurement Accuracy | ±0.3°C (at 25°C) |
| Temperature Resolution | 0.01°C |
| Output Signal | I²C digital signal |
| Supply Voltage | DC 2.0 ~ 5.5V |
| I²C Address | 0x38 (fixed, non-changeable) |
| Operating Current | < 200μA (active mode) |
| Standby Current | < 2μA |
| Response Time | < 5s (for humidity) |
| Sensing Element | Polymer capacitor |
| Operating Temperature Range | -40 ~ +80°C |
| Storage Temperature Range | -40 ~ +80°C |
