商品の詳細:
|
| カテゴリ: | 圧力センサー | パッケージタイプ: | 6-DIP |
|---|---|---|---|
| 製品説明: | 0-30のpsi | 範囲: | 0～30ポンド |
| 動作温度範囲: | -40°C〜85°C | ポート仕様: | オスタイプ 0.197 インチ |
| ハイライト: | YJJ 185PC30DT pressure sensor transmitter,electronic pressure sensor with trigger interface,industrial pressure sensor transmitter with warranty |
||
Product Description:

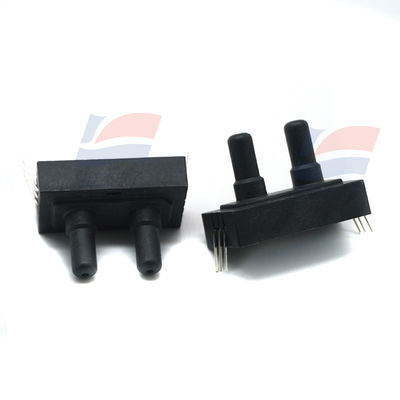

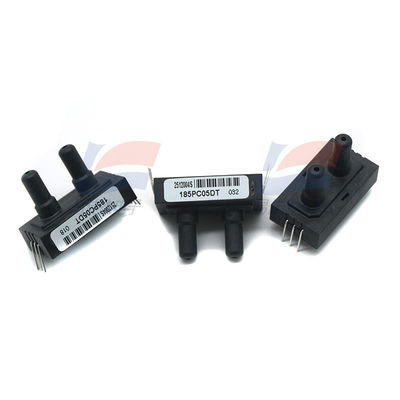

YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter
Features:
Differential pressure sensor. Here is the description of its core parameters: Basic Information
Model: 185PC30DT
Category: Pressure Sensor
Manufacturer: Honeywell Sensing and Control
Package Type: 6-DIP (Dual In-line Package)
Product Description: SENSOR DIFFERENTIAL 0-30 PSI (Differential Pressure Sensor, with a range of 0-30 pounds / square inch)
Core Performance Parameters
Pressure Type: Differential Pressure (measuring the pressure difference between two pressure ports)
Operating Pressure Range: 0-30 PSI (pounds / square inch, approximately 206.84 kilopascals)
Operating Temperature Range: -40°C ~ 85°C (stable operation within this temperature range, with no permanent harmful changes to performance parameters)
Structural and Connection Parameters
Port Specifications: Dual-port design, male type 0.197 inches (5mm) tubular interface, facilitating medium connection and enabling differential pressure measurement
Termination Type: PC pins (facilitating circuit board welding or plug-in connection)
Product type: pressure sensor for board - machine interface
RoHS:
Working pressure :0 psi to 15 psi
Pressure type :Gauge, Differential
Output type :Analog
Installation style :Through Hole
Port type :Dual Axial Barbless
Working power supply voltage :16 V
Minimum operating temperature: -40 C Maximum operating temperature :+ 85 C
Output voltage :6 V
Port size :5 mm
Operating power supply current :6 mA
Product type :Pressure Sensors
Factory Packing Quantity :10
Child categories: Sensors
Specifications:
| Working power supply voltage | 16 V |
| Port type | Dual Axial Barbless |
| Minimum operating temperature | -40 ° C |
| Maximum operating temperature | + 85 ° C |
