商品の詳細:
|
| 感光性区域: | φ2.0mm | エレメント数: | 1 |
|---|---|---|---|
| パッケージ: | 金属 | パッケージカテゴリ: | to-5 |
| 冷却: | 冷却されていない | スペクトル応答範囲: | 0.9〜1.7 μm |
| ハイライト: | silicon PIN photodiode low capacitance,UV photodiode sensor non cooled,photodiode sensor with low terminal capacitance |
||

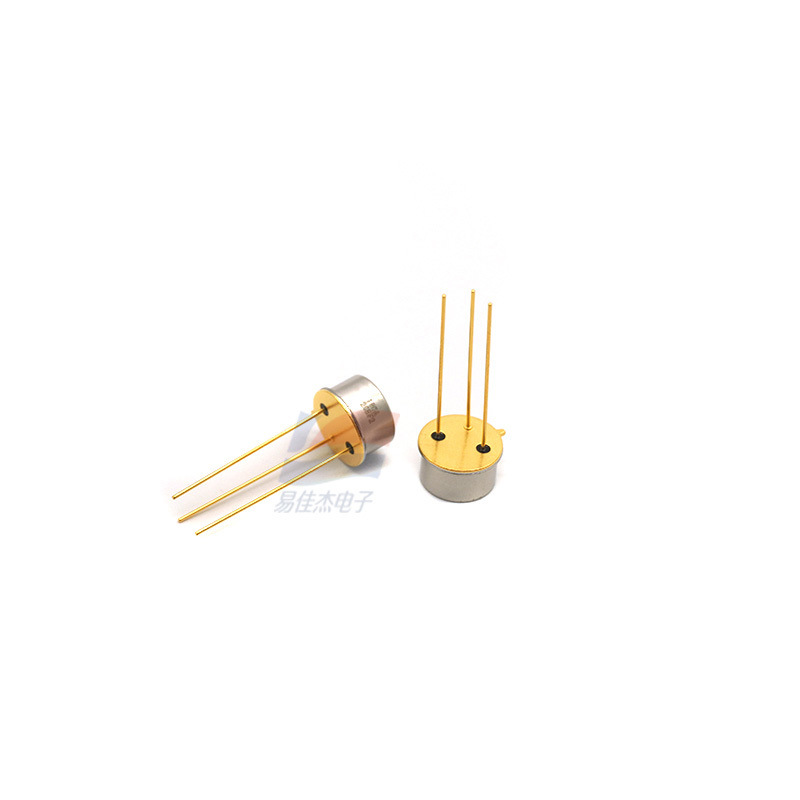

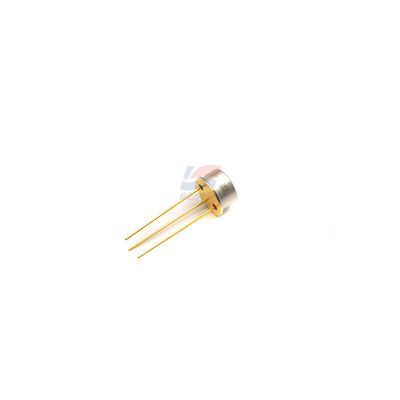

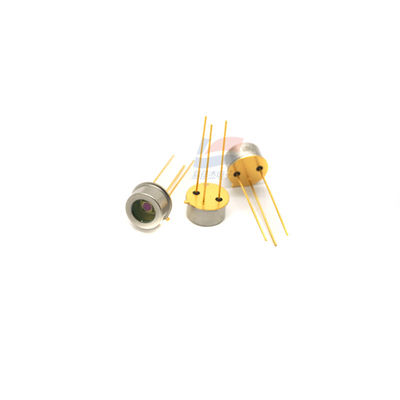

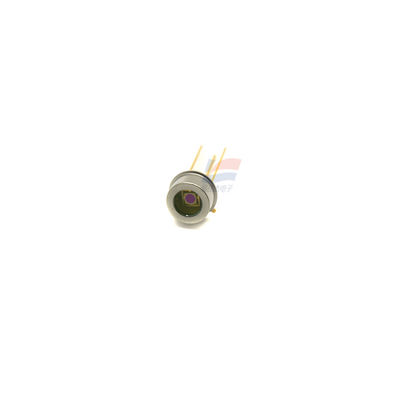

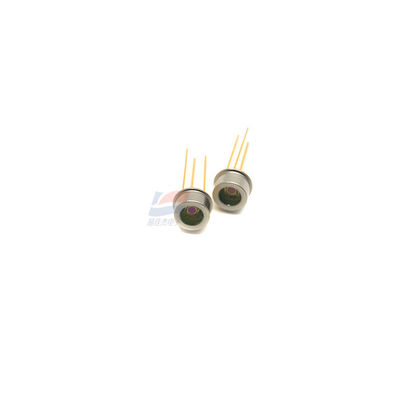

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled
Features
- Low noise, low dark current
- Low terminal capacitance
- Photosensitive area: φ2 mm
- Low noise
Applications
*Laser monitors
*Optical power meters
*Laser diode life test
*NIR (near infrared) photometry
*Optical communications
Options
Amplifier for InGaAs PIN photodiode C4159-03
Heatsink for one-stage TE-cooled type A3179
Heatsink for two-stage TE-cooled type A3179-01
Temperature controller for TE-cooler type C1103-04
Specification:
|
Peak sensitivity wavelength (typ.)
|
1.55 μm |
| Photosensitivity (typ.) | 1.1 A/W |
| Dark current (max.) | 7.5 nA |
| Cutoff frequency (typ.) | 13 MHz |
| Terminal capacitance (typ.) | 250 pF |
