商品の詳細:
|
| 動作電圧範囲: | DC4.5V～DC24V | 供給電流: | 5 VDC で 6 mA (標準)。 8mA(最大) |
|---|---|---|---|
| 出力タイプ: | オープンコレクタNPN（シンキング） | 出力電流容量: | 20 ma |
| 動作温度範囲: | -40℃～+150℃ | ヒステリシス(BOP - BRP): | 15 ガウス以上 |
| ハイライト: | unipolar hall effect sensor,hall effect position sensor,proximity detection hall sensor |
||

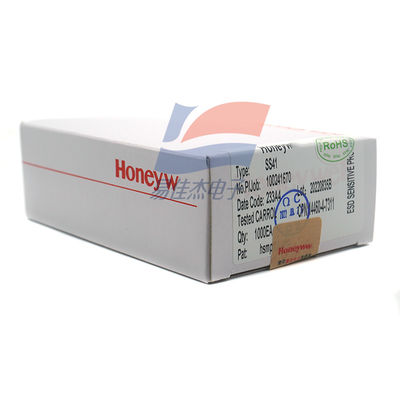

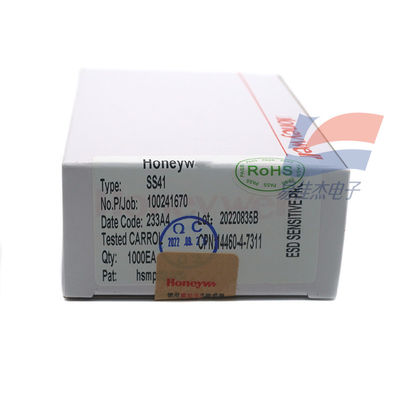

SS41 High-performance Unipolar Hall Effect Sensor Manufactured For Position Sensing Proximity Detection
Key Features:
Applications:
| Operating Voltage Range | 4.5 VDC to 24 VDC |
| Supply Current | 6 mA (typical) at 5 VDC; 8 mA (max) |
| Output Type | Open-collector NPN (sinking) |
| Output Current Capacity | 20 mA (max) continuous |
| Operating Temperature Range | -40 °C to +150 °C |
| Storage Temperature Range | -40 °C to +150 °C |
| Magnetic Operate Point (BOP) | 20 Gauss (min) to 70 Gauss (max) |
| Magnetic Release Point (BRP) | -70 Gauss (min) to -20 Gauss (max) |
| Hysteresis (BOP - BRP) | ≥ 15 Gauss |
| Response Time | 1 μs (typical) |
| Package Type | TO-92, TO-92S (standard through-hole) |
