商品の詳細:
|
| 測定範囲: | 微圧 (<0.01 MPa) | 正確さ: | 1%FS(フルスケール) |
|---|---|---|---|
| 応答時間: | <10 ms=""> | 出力信号: | アナログ5V |
| ハイライト: | medical equipment pressure sensor,high precision pressure sensor,micro electronic pressure sensor |
||

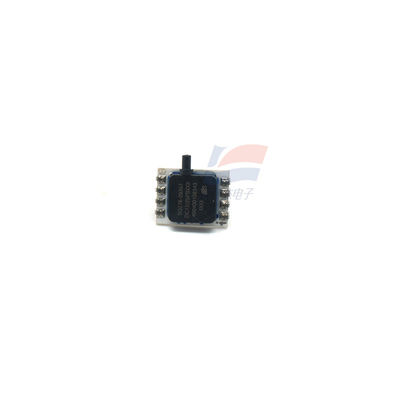

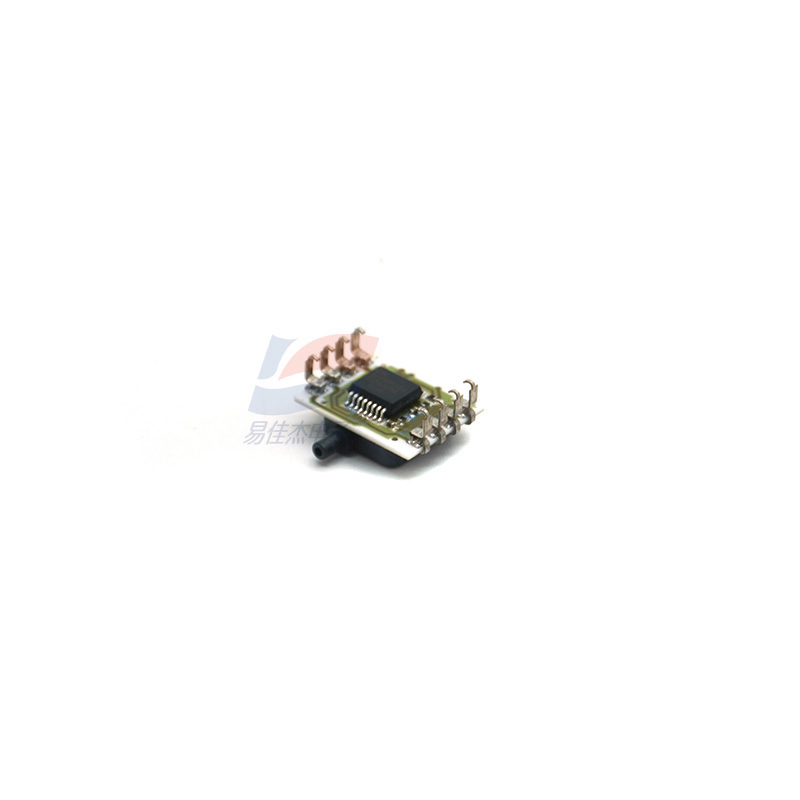

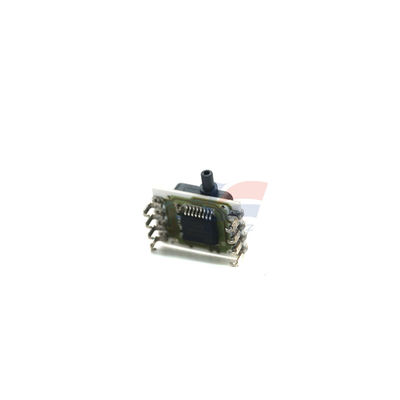

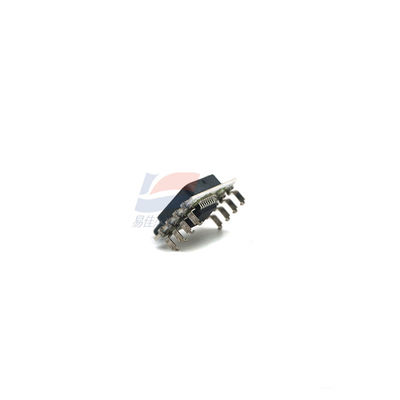

SQ276-09357 Pressure Sensor Suitable For Medical Equipment High Precision Micro
Application scenarios
*Medical field
*Industrial automation field
Performance Features
High-Precision Measurement: Meets the stringent pressure control requirements of medical devices such as pediatric ventilators, accurately measuring differential pressures within 100 mbar.
Fast Response and High Stability: Short response times enable real-time monitoring of pressure changes. High-quality materials and advanced manufacturing processes ensure stable performance over extended periods of operation, reducing failure rates and maintenance costs.
Compatibility and Customization: Standard interfaces and communication protocols enable seamless integration with various control systems. Specifications and performance parameters, such as measurement range and output signal type, can also be customized to meet customer needs.
Durability and Low Power: The semiconductor structure provides high durability, suitable for high-frequency use in medical equipment. The low power design extends battery life and reduces energy consumption.
Specification:
| Power Requirements | AC/DC dual-use, typical voltage 4-12V (customizable) |
| Operating Temperature | 0-80°C, adaptable to temperature fluctuations in medical environments |
| Dimensions | 1cm × 1cm, compact design, easy to integrate into ventilators |
| Material | Semiconductor single crystal structure, amorphous housing, highly corrosion-resistant |
