商品の詳細:
|
| 最大過負荷: | 1000 PPM | 解決: | <0.2ppm |
|---|---|---|---|
| 推奨される負荷抵抗器: | 10オーム | 再現性: | < ± 1% H2S 相当量 |
| 温度範囲: | -40℃～+50℃ | 期待動作寿命: | > 24か月 |
| ハイライト: | H2S gas sensor for industrial safety,hydrogen sulfide sensor with warranty,industrial gas sensor for H2S |
||

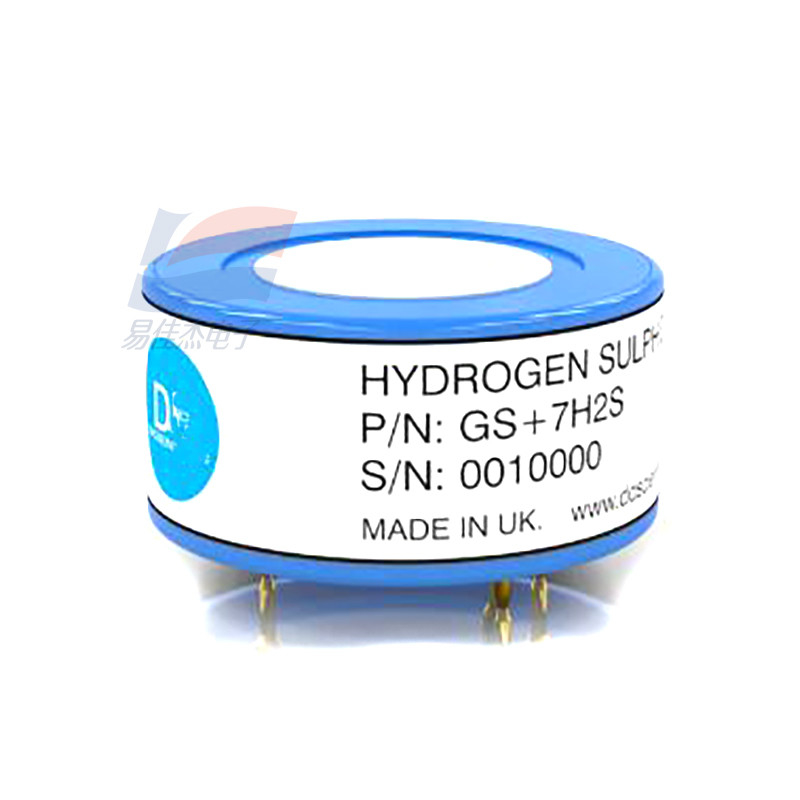

GS+7H2S Hydrogen Sulfide (H2S) Sensor For Industrial Safety Industrial General
Working Principle:
The GS+7H2S sensor operates based on the electrochemical three - electrode principle. Hydrogen sulfide gas diffuses through a permeable membrane and reacts with chemicals at the working electrode, while oxygen reacts at the counter - electrode. These reactions release charges to form a current, and the magnitude of the current is proportional to the hydrogen sulfide concentration. By measuring the current, the concentration of hydrogen sulfide can be determined.
Key Features:
Common Applications:
|
Parameter |
Value (GS+7H2S) |
Value (GS+7H2S - HC) |
|---|---|---|
| Measurement Range | 0 - 200 ppm | 0 - 5000 ppm |
| Maximum Overload | 1000 ppm | 1000 ppm |
| Output Signal | 370 ± 100 nA/ppm | 40 ± 20 nA/ppm |
| Response Time (T90) | < 40 seconds | < 40 seconds |
| Resolution | < 0.2 ppm (typical, dependent on electronics) | < 0.2 ppm (typical, dependent on electronics) |
| Recommended Load Resistor | 10 ohms | 10 ohms |
| Bias Voltage | 0V | 0V |
| Repeatability | < ± 1% H2S equivalent | < ± 1% H2S equivalent |
| Temperature Range | -40 °C to +50 °C | -40 °C to +50 °C |
| Pressure Range | Atmospheric ± 10% | Atmospheric ± 10% |
| Expected Operation Life | > 24 months | > 24 months |
| Warranty | 2 years from the date of dispatch | 2 years from the date of dispatch |
| Typical Baseline Range (Pure Air) | < ± 1 ppm H2S equivalent | < ± 1 ppm H2S equivalent |
| Long - term Output Drift | < 20% per annum | < 20% per annum |
