商品の詳細:
|
| 圧力タイプ: | ゲージ | 動作圧力: | 50kPa |
|---|---|---|---|
| 正確さ: | 0.5% | 出力タイプ: | アナログ |
| ハイライト: | MPXM2053GS pressure sensor SMD,silicon pressure sensor 50 kPa,board mount pressure sensor SMD |
||

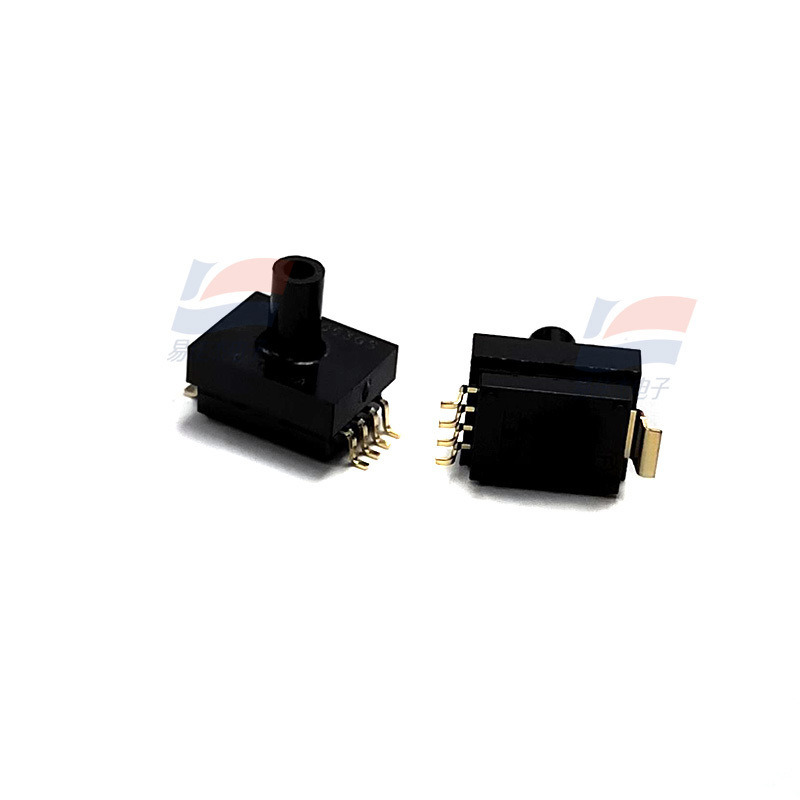

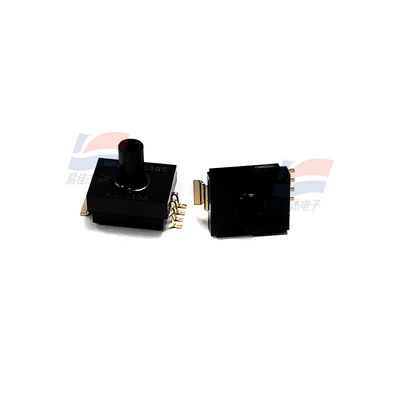

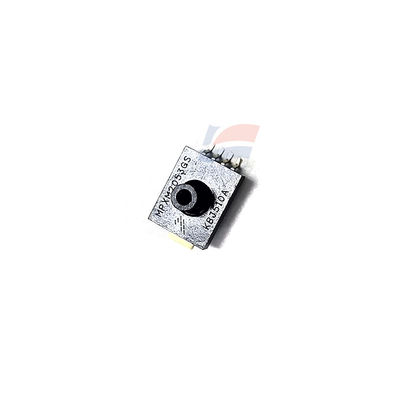

MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style
The MPX2053 series devices are silicon piezoresistive pressure sensors that provide a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film
resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation.
Features and Benefits
• Ratiometric to Supply Voltage
• Differential and Gauge Options
• Temperature Compensated over 0 °C to 85 °C
• Easy-to-Use Chip Carrier Package Options
Applications
• Level Indicators
• Medical Diagnostics
• Robotics
• Pressure Switching
• Pump/Motor Controllers
• Non-Invasive Blood Pressure Measurement
Specification:
|
Mounting Style
|
SMD/SMT |
| Operating Supply Voltage | 10 V |
| Port Type | Single Axial Barbless |
| Package / Case | M-PAK-5 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 125℃ |
| Operating Supply Current | 6 mA |
| Port Size | 2.97 mm |
| Supply Voltage - Max | 16 V |
| Supply Voltage - Min | 1 V |
