商品の詳細:
|
| ハイライト: | Nitric Oxide gas sensor electrochemical,ABS material gas sensor,3 electrode nitric oxide sensor |
||
|---|---|---|---|

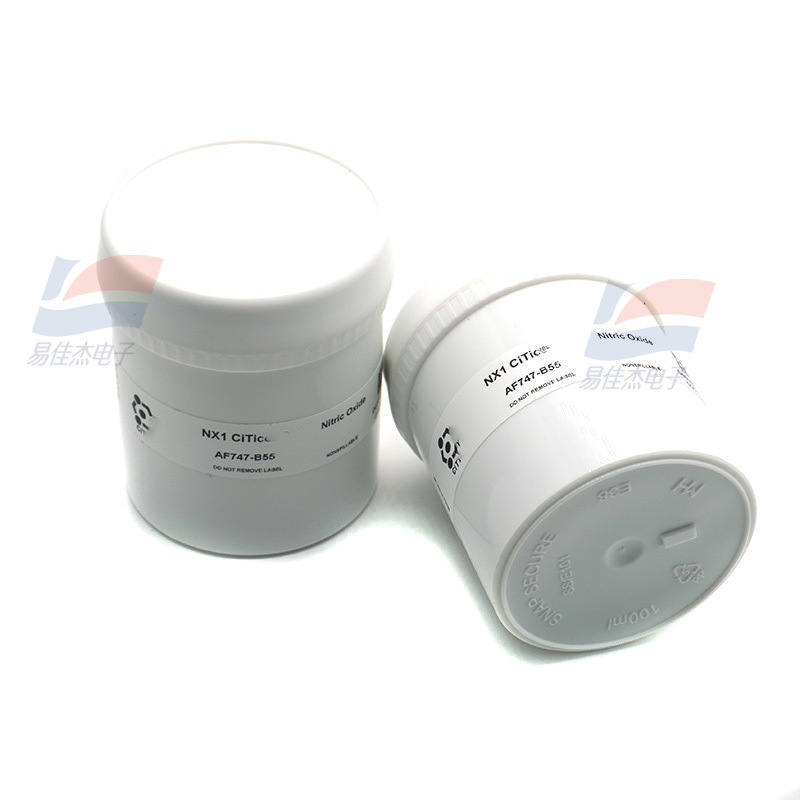

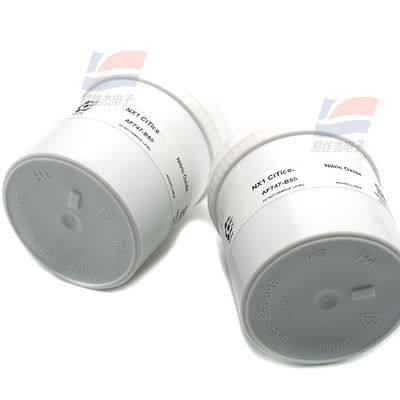

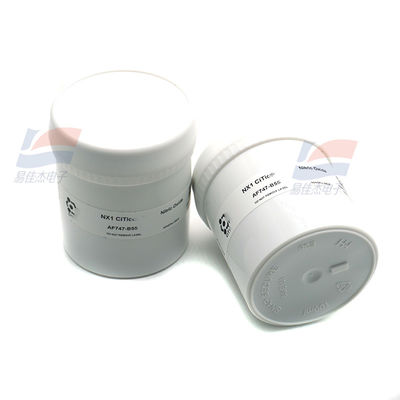

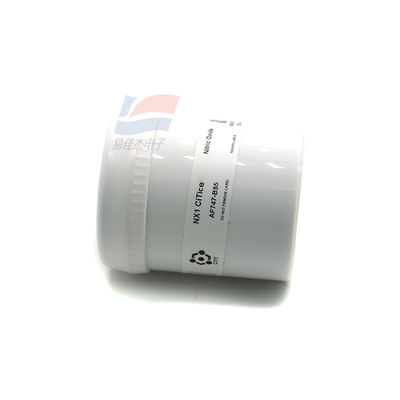

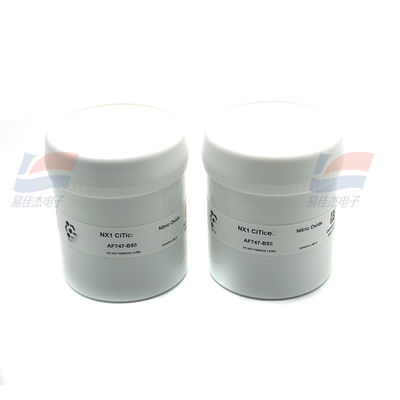

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials
Measurement:
| Operating Principle | 3-electrode electrochemical |
| Measurement Range | 0-5,000 ppm NO |
| Filter | To remove effect of SO, in gas stream |
| Sensitivity | 0.05 + 0.01 μAppm |
| Cross Sensitivity CO | <40 ppm |
| Response Time (T95 | <8 Seconds at 20°C |
| Baseline Offset (clean air) | 0 to +12 ppm equivalent |
| Zero Shift (0°c to +40°C) | <30 ppm equivalent |
| Resolution | 1 ppm |
Electrical
| Recommended Load Resistor | 10 Ω |
| Bias Voltage | +300 mv |
Mechanical
| Weight | 32 g (nominal) |
| Housing Material | ABS |
| Orientationl | Any |
Enviromental
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 25°C in CTL packaging |
| Operating Pressure Range | 800 to 1100 mBar |
| Pressure Coefficient | 0.02% signal/mBar |
| Operating Humidity Range | 15 to 90% RH non-condensing |
