商品の詳細:
|
| 動作原則: | 一定した流れ | 検出されたガス: | 燃える気体と蒸気 |
|---|---|---|---|
| 測定範囲: | 0-100% LEL | 最大メタン濃度: | 5% v/v |
| ハイライト: | CAT-16 combustible gas sensor,constant current gas sensor,5 year lifetime gas sensor |
||

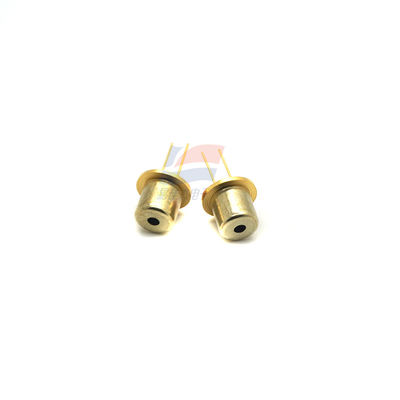

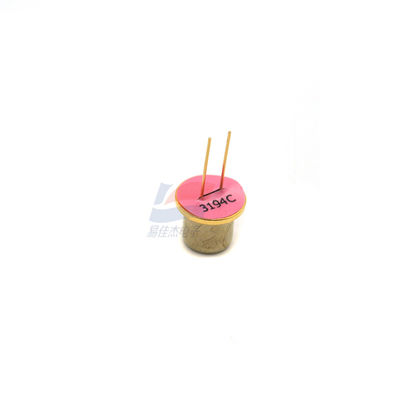

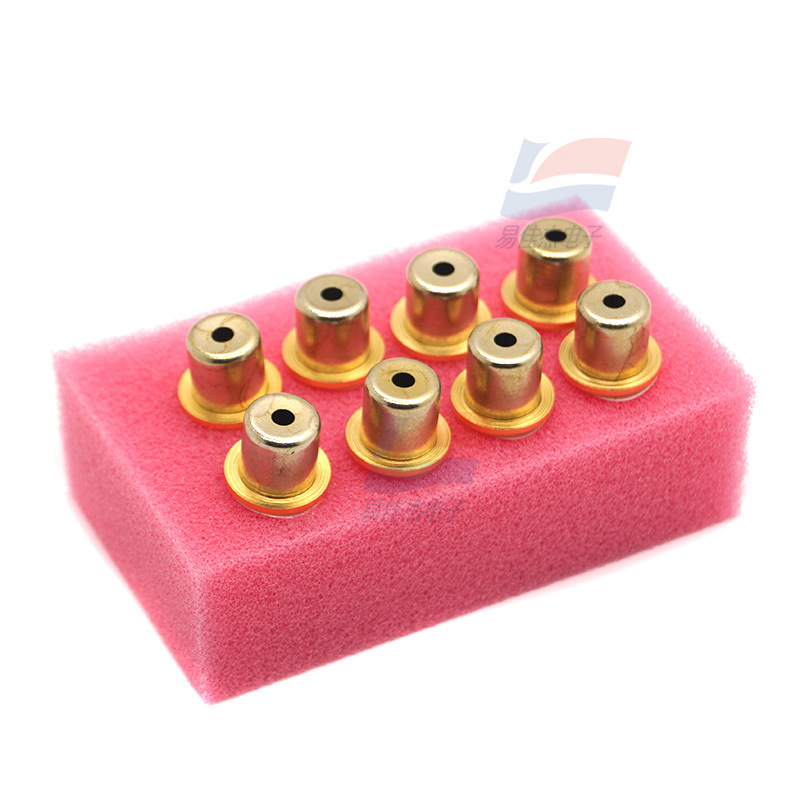

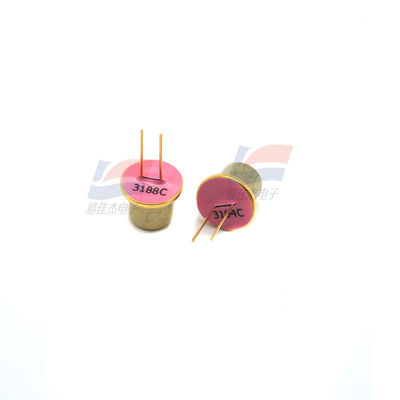

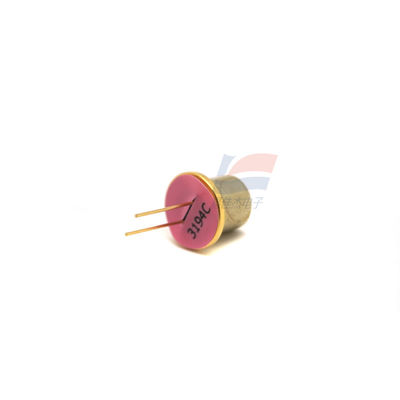

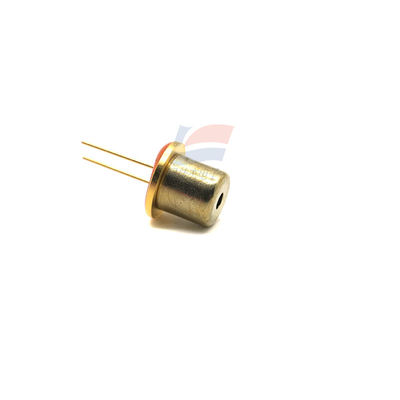

CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time
Measurement
| Sensitivity | >12 mV%methane |
| T90 Response Time | <10 seconds (methane) |
| Hexamethyl-Disiloxane | Very high |
| Hydrogen Sulfide | Very High |
Electrical
| Operating Voltage | 2.7V ±0.02VDC |
| Detector Operating Current | 200 mA |
| Maximum Power Consumption | 580 mW |
Mechanical
| Can Type | Restricted |
| Casing Material | Nickel Silver |
| Pin Material | Ferrous alloy with plating of gold over nickel |
| Orientation Sensitivity | None |
Lifetime
| Expected Operating Life | Greater than 5 years |
| Long Term Span Drift | <±3% LEL methane per year |
| Long Term Zero Drift | <+3% LEL methane per year |
| Storage Conditions | 0-20°C,45-75%RH in clean air |
| Storage Life | 6 months in sealed container |
| Warranty Period | 12 months from date of despatch |
