商品の詳細:
|
| 作業原則: | 鉛フリーの電気化学原理 | 電源電圧: | DC3～3.6V |
|---|---|---|---|
| 消費電力: | 0.48mW | 動作電流: | 146.79μA |
| 測定範囲: | 0% - 25% 体積 O2 | 解決: | 0.1% O2 |
| ハイライト: | industrial oxygen gas sensor,electrochemical O2 sensor,safety oxygen sensor with warranty |
||
Product Description:

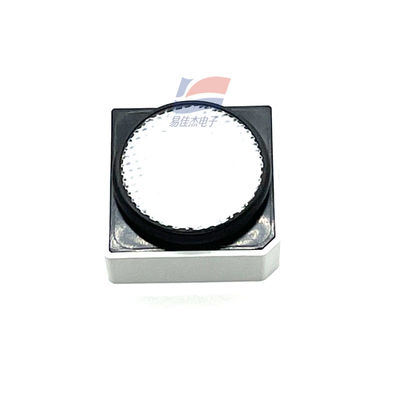

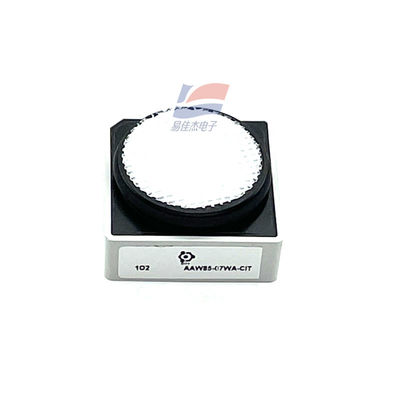

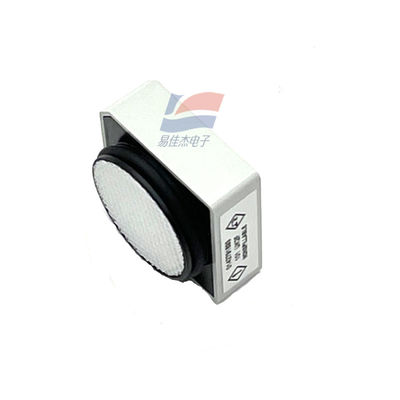

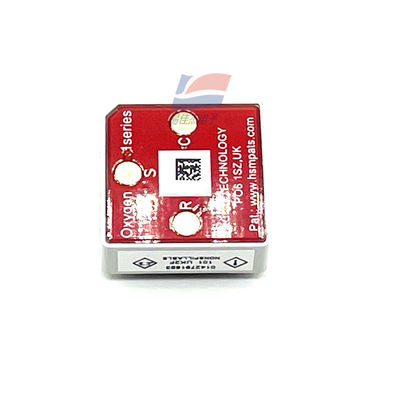

YJJ 1O2 AAW85-07WA-CIT Electrochemical Oxygen O2 Gas Sensor Is Used For Industrial Safety
Features:
Oxygen (O2) simulates a gas sensor
Main features and advantages
Commissioning of small instruments
Designed to meet global performance standards.
The ANSI/ISA 92.04.01:2007
BS EN 50104:2010
AS/NZS 4641-2007
Improve performance across extended environments
Five years of expected operating life
Conforms to RoHS and lead free electrochemical design
Technical specifications
measurement
Lead free electrochemical technology
Measurement range 0.6%vol.O2 to 25%vol.O2.
Max overload 30%vol.O2
Airborne filter None
Sensitivity * 80 mA to 130 mA (in air).
T50 Response time *
< 10 seconds (at 20°C)
< 15 seconds (at -40°C to +60°C)
T90 response time * normal < 15 seconds
R90 Recovery time *< 45 seconds (@20°C to +60°C).
R95 Recovery time; 60 seconds
Zero current (offset)(N2 after 3 minutes)
< 0.6% vol.O2 equivalent normally < 0.3% vol.O2 equivalent
For the preheating time, see the feature description
Repetition. ±5% of the measured value.
Linear S=K loge 1/(1-c)
Specifications:
| Measurement Range | 0.6% vol. O2 to 25% vol. O2 |
| Maximum Overload | 30% vol. O2 |
| Sensitivity | 80 mA to 130 mA in Air |
| T50 Response Time | < 10 seconds (@ 20°C) < 15 seconds (@ -40°C to +60°C) |
