商品の詳細:
|
| 測定範囲: | 0 - 100% O₂ | 正確さ: | 恒常温度下では |
|---|---|---|---|
| 信号出力: | 25℃の空気中 | 応答時間（T90）: | 6秒未満 |
| 動作温度: | 0-45°C | 保管温度: | 0～25℃。できる |
| ハイライト: | YJJ CLASS R-22MED oxygen sensor,medical oxygen sensor for anesthesia machines,0-100% oxygen sensor with warranty |
||
Product Description:

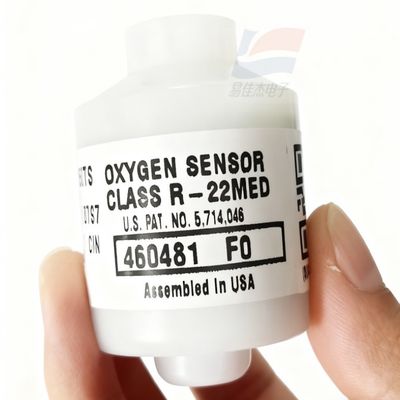

YJJ CLASS R-22MED 0-100% oxygen sensor is used in anesthesia machines and medical oxygen batteries
Features:
CLASS R-22MED oxygen sensor is a high-performance oxygen sensor specially designed for medical applications. Here is a summary of its key parameters:
Measurement range: 0 - 100% O₂
Accuracy: Under constant temperature and pressure conditions, the output accuracy is ±1% of the full scale
Signal output: In 25°C air at 1 standard atmosphere pressure, the output voltage is 8.5 - 14 mV
Response time (T90): Less than 6 seconds, that is, the time from the initial state to reaching 90% of the final value does not exceed 6 seconds
Temperature range:
Operating temperature: 0 - 45°C
Storage temperature: 0 - 25°C, can withstand a short period of up to 55°C during transportation
Humidity range: 0 - 99% RH under non-condensing conditions
Expected lifespan: 42 months
Compatibility: Compatible with various oxygen battery models such as PSR-11-197-MH, MOX-1, OOM-103, GO-12, M-18, MAX-12C, MAX-23, CAT 644, etc.
Protection features: Capable of resisting the long-term impact of nitrous oxide, suitable for modern operating rooms and other medical environments
Origin and assembly: Assembled in the USA (Assembled In USA), with a U.S. patent (U.S. PAT. NO. 5,714,046)
Specifications:
| Measuring range | 0-100% O2 |
| Sensitivity | 55 ~ 90nA/ PPM |
| Response time | lt;25s |
| Full scale - error | 15-25ppm |
