商品の詳細:
|
| 範囲: | 0-20 ppm | 最大負荷: | 150ppm |
|---|---|---|---|
| 感度: | 0.5±0.1μA/ppm（20℃） | 応答時間: | T90 ≤ 45秒 |
| ベースラインの安定性: | ベースラインドリフト < ±0.2 μA (20℃) | 湿度範囲: | 15％〜90％RH |
| ハイライト: | YJJ electrochemical sulfur dioxide sensor,SO2 gas concentration detector,air quality sulfur dioxide sensor |
||
Product Description:

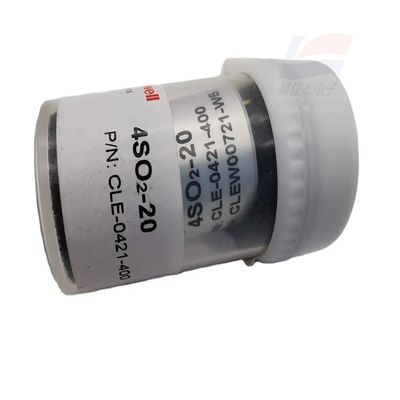

YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air
Features:
Brand of 4so2-20 sulfur dioxide sensor: RAE
Output: -
Range: 0-20 PPM
Product no. : cse-0421-400
Response time: T90≤45 seconds
Resolution: 0.1 PPM
Sensitivity: 0.5±0.1 A/ PPM
Maximum detected concentration: 150ppm
Normal detection range: 0-20ppm
Operating temperature range: -20℃ ~ 50℃
Type: electrochemical gas sensor
Typical application: sulfur dioxide concentration detection
Specifications:
| Detection range | 0-20 ppm |
| Sensitivity | 0.5 ± 0.1 μA/ppm |
| Resolution | 0.1 ppm |
| Response time (T90) | ≤ 45 seconds |
