商品の詳細:
|
| 感度: | 0.2±0.04 | 解決: | 0.1 ppm |
|---|---|---|---|
| 応答時間（T90）: | ＜90秒 | バイアス電圧: | 200～300mV |
| 推奨される負荷抵抗: | 10～100Ω | 使用温度範囲: | -10 ℃〜55℃ |
| ハイライト: | HCN gas sensor for industrial safety,electrochemical HCN gas detector,toxic HCN detection sensor |
||

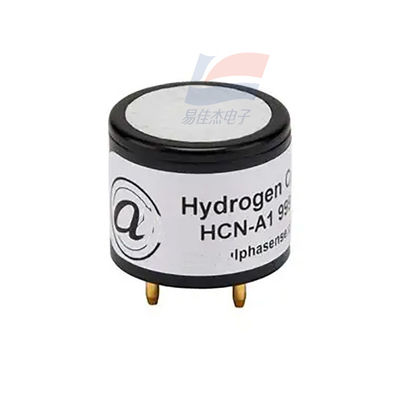

HCN-A1 Electrochemical Hydrogen Cyanide (HCN) Gas Sensor Widely For Toxic HCN Detection In Industrial Safety Scenarios
Description:
The HCN-A1 is an electrochemical gas sensor dedicated to the accurate detection of hydrogen cyanide (HCN) — a highly toxic gas. It operates based on the electrochemical reaction of HCN at the internal working electrode, where the generated current is linearly proportional to the target gas concentration (following Faraday’s Law). This sensor features a compact structure, reliable performance, and strong environmental adaptability, making it easy to integrate into portable, fixed, or handheld gas detection devices. It is designed to provide real-time concentration data for safety protection and environmental monitoring.
Features:
Applications:
| Detection Gas | Hydrogen Cyanide (HCN) |
| Measurement Range | 0 - 50 ppm (standard range; custom ranges available) |
| Maximum Exposure Concentration | 100 ppm (short-term, non-damaging) |
| Sensitivity | (0.2 ± 0.04) µA/ppm |
| Resolution | 0.1 ppm |
| Response Time (T90) | ＜ 90 s |
| Bias Voltage | 200 - 300 mV (typical 250 mV) |
| Recommended Load Resistance | 10 - 100 Ω |
| Repeatability | ＜ ±2% of full scale |
| Zero Drift (25℃) | ＜ 0.3 ppm/month |
| Operating Temperature Range | -10℃ to 55℃ |
| Operating Humidity Range | 20% - 85% RH (non-condensing) |
| Storage Temperature Range | -20℃ to 60℃ |
| Pressure Range | 86 - 106 kPa (standard atmosphere) |
| Expected Service Life | 2 years (under standard operating conditions) |
| Package Type | Metal can with pin-type leads |
