商品の詳細:
|
| フォームファクター: | LCC、68PIN | 寸法（mm）: | 24*24*2.6 |
|---|---|---|---|
| GNSS: | 0 | 温度: | -40℃〜 +85℃ |
| ハイライト: | SIM7000G LPWA module with warranty,SIMCom wireless module tray packing,SIM7000G RF module 10 years life |
||

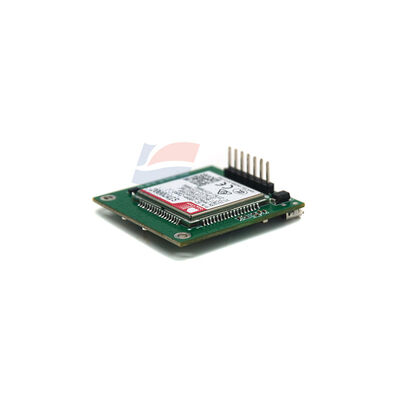

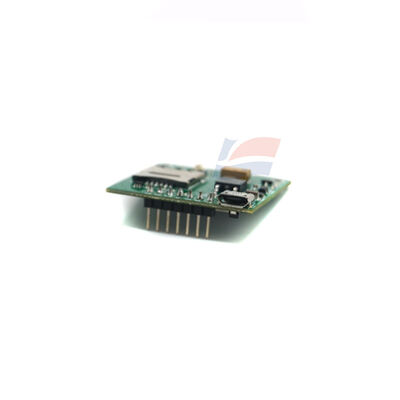

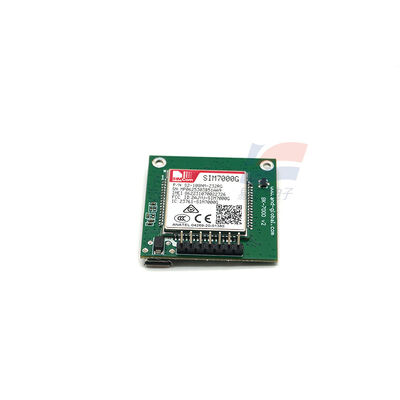

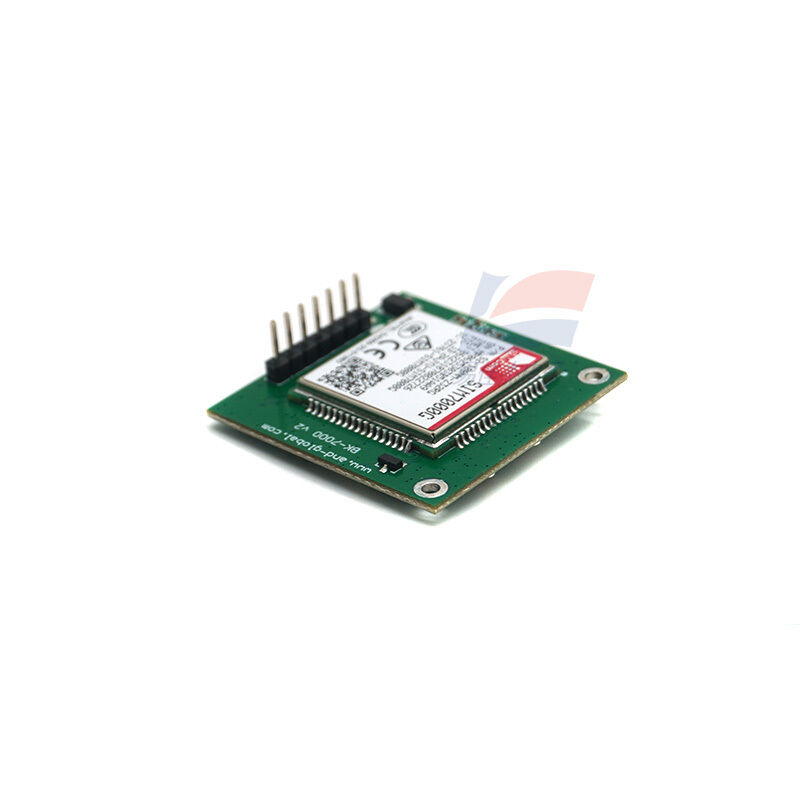

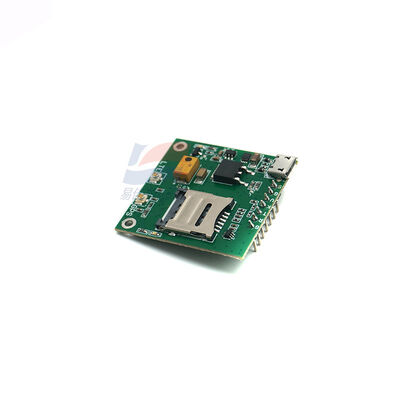

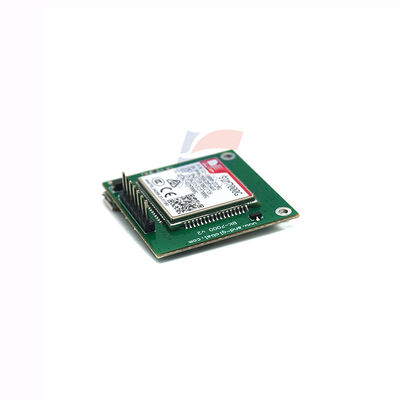

SIM7000G RF And Wireless SIMCom LPWA Module 10 Years Life Tray Packing
The SlM7000 series is the LPWA module which supports wireless communication modes of Cat-M/ Cat-NB/GPRS/EDGE
The SlM7000 series adopts LCC form factor and has a compact size of 24mm*24mm which makes it ideal for compact products design.
The SlM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, 12C etc. The SlM7000 series is designed for
applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of
performance, security and flexibility, this module is ideally suited for M2M applications, such as metering asset tracking, remote monitoring, E-health etc.
Product Advantages
● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000 series can extend battery life to 10 years
● SIM7000 series provides deeper coverage enhancement compared to GSM
● The form factor and AT commands of the SIM7000 series are compatible with SIM900 and SIM800F
Specification:
| Supply Voltage Range(V) 3.0~ 4.3 | |
| Power Consumption |
Power Off(uA) 7 PSM(uA) 9 |
