商品の詳細:
|
| 検出されたガス: | 亜酸化窒素（N₂O、笑気ガス） | 検出原理: | 非分散赤外線 (NDIR) テクノロジー |
|---|---|---|---|
| 標準測定範囲: | 0-1000ppm、0-2000ppm (標準); 0 ～ 10%、0 ～ 100% Vol (工業用グレード) | 解決: | ≤1ppm (低域); ≤0.1% Vol (高域) |
| ハイライト: | IRS4 N2O gas sensor,Nitrous oxide IR sensor,N2O G4 infrared detector |
||

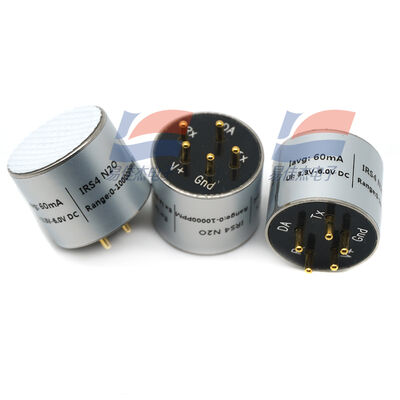

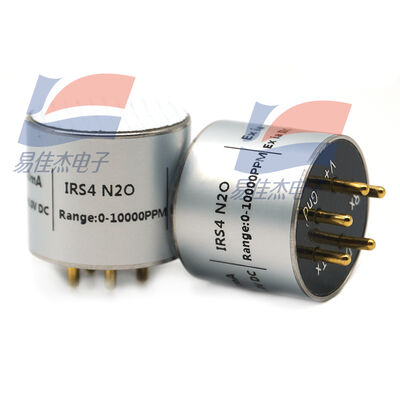

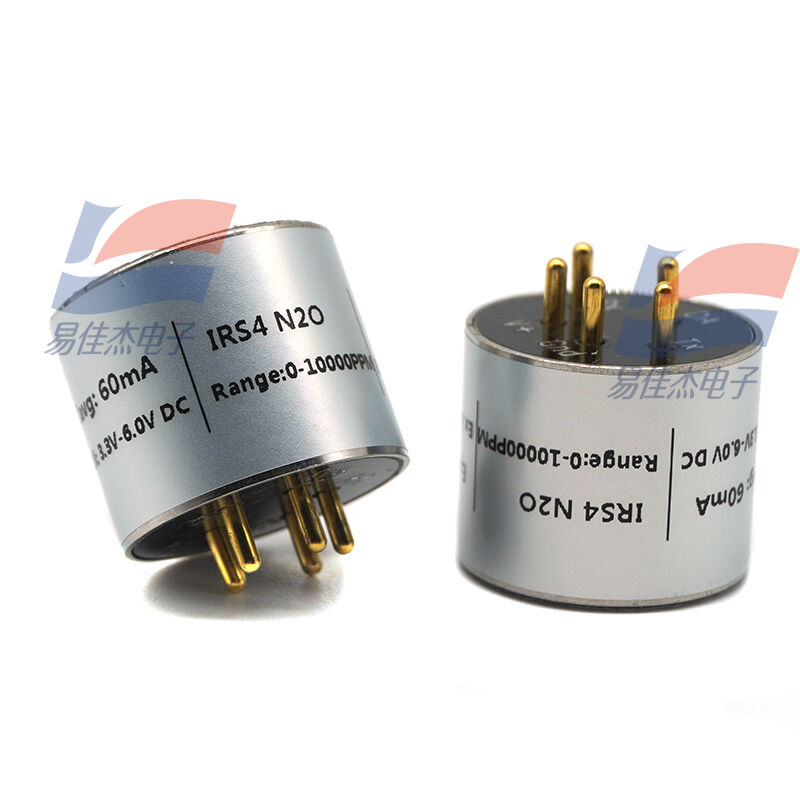

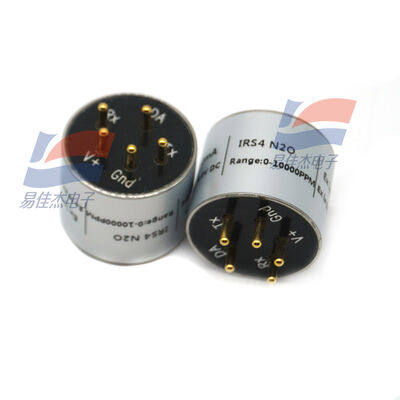

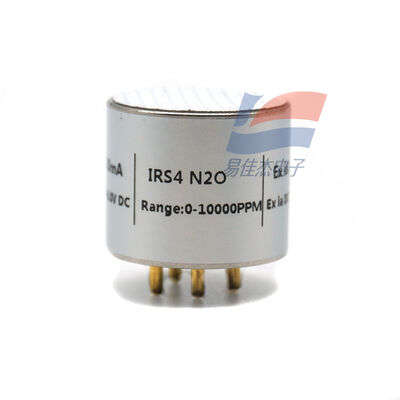

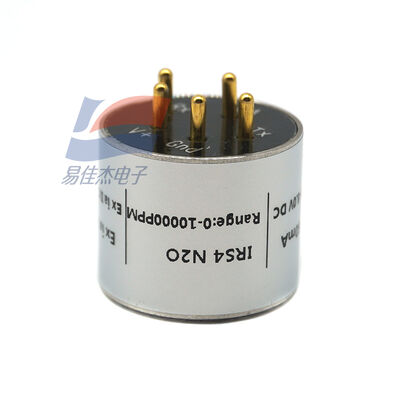

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared
Specification:
| Accuracy | ±2ppm (0-100ppm); ±10% of reading (100-1000ppm); ±2% FS (full scale) |
| Response time | ≤7 seconds (data refresh); ≤45 seconds (gas response) |
Electrical and output characteristics
| Power supply voltage | 9-24VDC (industrial modules); 5VDC (OEM miniature sensors) |
| Output signal | 4-20mA, 0-10VDC (analog); RS232/RS485 (digital) |
| Power consumption | ≤100mA (24VDC power supply) |
| Alarm output | Optional 1-3 level relay alarm (contact capacity 8A/250VAC) |
Environmental and mechanical properties
| Operating temperature | 0-50℃ (standard); -40-85℃ (wide temperature range) |
| Operating humidity | 0-99% RH (non-condensing) |
| Protection rating | IP65 (industrial grade); IP40 (OEM module) |
| Sampling method | Diffusion/Pump suction optional |
| Gas medium | Non-corrosive gas (requires filtration of oil and dust) |
Stability and Calibration
| Zero drift | ≤±2% FS/year |
| Span drift | ≤±2% FS/year |
| Calibration cycle | 6-12 months (recommended) |
| Temperature compensation | Built-in automatic temperature compensation (0-50℃ range) |
